HYCHIKA HRW09H2 9-Piece Flexible Ratcheting Combination Wrench Set User Manual

1. పరిచయం

Thank you for choosing the HYCHIKA HRW09H2 9-Piece Flexible Ratcheting Combination Wrench Set. This manual provides essential information for the safe and effective use, maintenance, and care of your new tool set. Please read this manual thoroughly before first use and retain it for future reference.

2. భద్రతా సమాచారం

గాయం ప్రమాదాన్ని తగ్గించడానికి చేతి పరికరాలను ఉపయోగిస్తున్నప్పుడు ఎల్లప్పుడూ ప్రాథమిక భద్రతా జాగ్రత్తలను గమనించండి.

• తగిన వ్యక్తిగత రక్షణ పరికరాలను ధరించండి: Always wear safety glasses to protect your eyes from flying debris. Gloves are recommended for hand protection.
• Inspect tools before use: Ensure wrenches are clean, dry, and free from damage. Do not use damaged tools.
• Use the correct size wrench: Always select the correct wrench size for the fastener to prevent rounding the fastener head and potential injury.
• Ensure a secure grip: Maintain a firm grip on the wrench. Avoid using extensions or "cheater bars" unless specifically designed for the tool, as this can overload the wrench and cause breakage.
• Work in a well-lit area: Adequate lighting helps prevent accidents.
• పిల్లలను మరియు పక్కనే ఉన్నవారిని దూరంగా ఉంచండి: Ensure your work area is clear of distractions.
• Store tools safely: After use, clean and store wrenches in their designated roll-up bag in a dry, secure location.

3. ప్యాకేజీ విషయాలు

Your HYCHIKA HRW09H2 set includes the following items:

• 9 x Flexible Ratcheting Combination Wrenches (Sizes: 6mm, 8mm, 10mm, 12mm, 13mm, 14mm, 15mm, 17mm, 19mm)
• 1 x 600D Canvas Roll-up Storage Bag

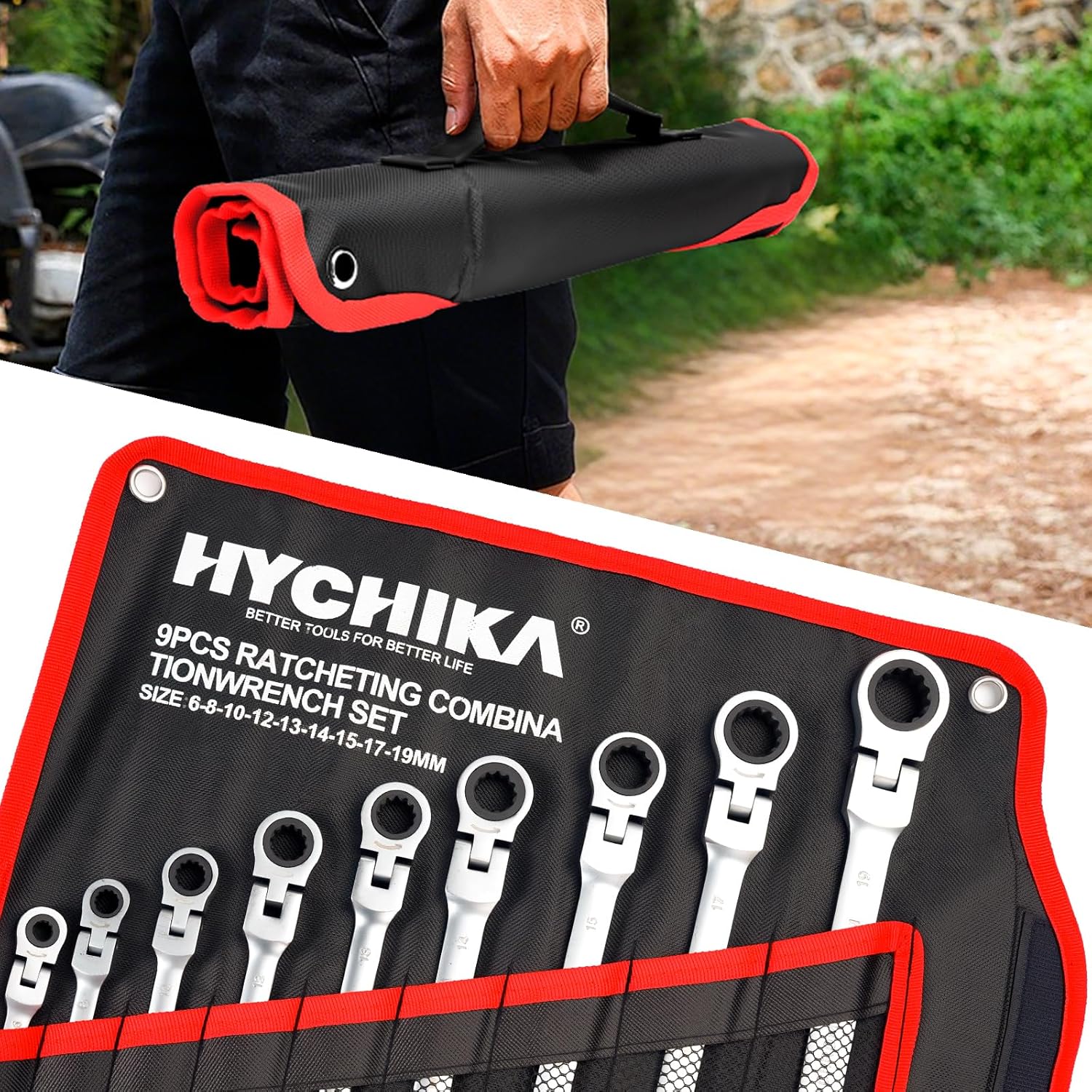

మూర్తి 3.1: The complete HYCHIKA 9-piece flexible ratcheting combination wrench set, including the wrenches and their canvas roll-up storage bag.

మూర్తి 3.2: ఒక వివరణాత్మక view of the individual wrenches, clearly showing the metric sizes from 6mm to 19mm.

4. ఉత్పత్తి లక్షణాలు

• 9 Metric Sizes: Includes 6mm, 8mm, 10mm, 12mm, 13mm, 14mm, 15mm, 17mm, and 19mm for versatile applications.
• 180° Flexible Ratchet Head: Allows access to fasteners in tight or awkward spaces.
• 72-Tooth Ratchet Mechanism: Requires only a 5° swing arc for operation, enabling work in confined areas.
• 12-Point Box End: Provides a secure grip on fasteners, reducing the risk of rounding.
• మన్నికైన నిర్మాణం: Forged from industrial-grade Chrome Vanadium Steel, offering high hardness, corrosion resistance, and long service life.
• ఎర్గోనామిక్ డిజైన్: Flat wrench profile with a matte surface treatment for comfortable grip and anti-fingerprint properties.
• పోర్టబుల్ నిల్వ: Comes with a 600D canvas roll-up bag for easy organization, transport, and moisture protection.

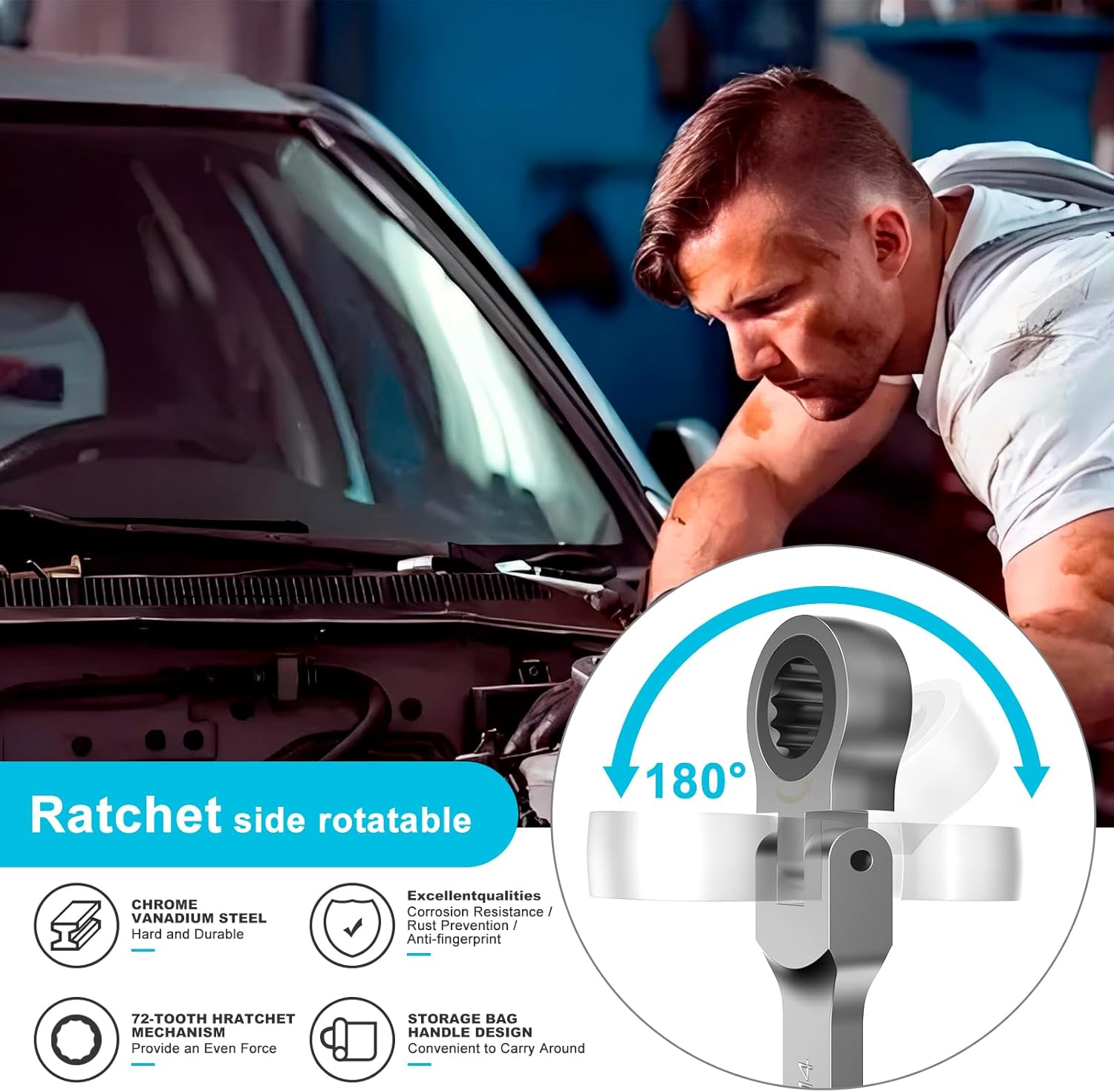

మూర్తి 4.1: The 180° flexible ratchet head allows for easy access and maneuverability in restricted spaces, as shown during automotive repair.

మూర్తి 4.2: Illustration of the 72-tooth ratchet design, which provides precise rotation and strength control with a minimal 5° swing arc, and the 12-point box end for reduced bolt damage.

మూర్తి 4.3: The wrenches are constructed from premium Chrome Vanadium Steel, ensuring high strength, corrosion resistance, wear resistance, rust prevention, and an anti-fingerprint finish.

5. సెటప్ మరియు తయారీ

1. Unpack the set: దాని ప్యాకేజింగ్ నుండి రెంచ్ సెట్‌ను జాగ్రత్తగా తొలగించండి.
2. నష్టం కోసం తనిఖీ చేయండి: Before first use, visually inspect each wrench for any signs of manufacturing defects or shipping damage. If any damage is found, do not use the tool and contact customer support.
3. Familiarize yourself with sizes: Identify each wrench by its clearly marked size (6mm to 19mm).
4. పని ప్రాంతాన్ని సిద్ధం చేయండి: మీ పని ప్రాంతం శుభ్రంగా, బాగా వెలుతురుతో మరియు అడ్డంకులు లేకుండా ఉండేలా చూసుకోండి.

6. ఆపరేటింగ్ సూచనలు

The HYCHIKA flexible ratcheting combination wrenches are designed for tightening and loosening nuts and bolts.

1. Select the correct size: Choose the wrench that precisely fits the fastener. Using an incorrect size can damage the fastener and the wrench.
2. Position the wrench:
   • కోసం ఓపెన్ ఎండ్, slide it over the fastener head.
   • కోసం ratcheting box end, place it over the fastener. The 12-point design provides a secure grip.
3. Adjust the flexible head (if needed): The ratcheting head can pivot up to 180°. Adjust its angle to best suit the access requirements of your work area.
4. Apply force:
   • కు బిగించండి, turn the wrench clockwise.
   • కు విప్పు, turn the wrench counter-clockwise.
   The ratcheting mechanism allows you to turn the fastener without removing the wrench from the bolt head, simply by reversing the direction of your hand movement. There is no switch; the ratchet engages in the direction of applied torque.
5. నియంత్రణను నిర్వహించండి: Apply steady, even pressure. Avoid sudden jerks or excessive force.

మూర్తి 6.1: Examples of the wrenches being used in different scenarios, including automotive engine work, securing a bolt in a vice, and adjusting plumbing fixtures.

7. నిర్వహణ

Proper maintenance ensures the longevity and optimal performance of your wrench set.

• శుభ్రపరచడం: After each use, wipe down the wrenches with a clean, dry cloth to remove dirt, grease, and moisture. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
• సరళత: Periodically apply a small amount of light machine oil to the ratcheting mechanism to ensure smooth operation. Wipe off any excess oil.
• నిల్వ: Store the wrenches in their provided 600D canvas roll-up bag. This protects them from dust, moisture, and prevents them from getting lost. Store the bag in a dry, secure place away from direct sunlight and extreme temperatures.
• తనిఖీ: Regularly inspect the wrenches for any signs of wear, cracks, or damage. Replace any damaged tools immediately.

మూర్తి 7.1: The durable 600D canvas roll-up bag provides convenient storage and portability for the wrench set, protecting the tools when not in use.

8. ట్రబుల్షూటింగ్

9. స్పెసిఫికేషన్లు

10. వారంటీ మరియు మద్దతు

HYCHIKA products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or replacement parts, please refer to the warranty card included with your purchase or visit the official HYCHIKA webసైట్.

Official HYCHIKA Webసైట్: www.hychika.com (This is a placeholder link as no specific support link was provided in the product data. Users should refer to the actual product packaging or official brand channels for precise support information.)
