DEERC 209E 1:10 ఫాస్ట్ బ్రష్‌లెస్ RC కార్ ఇన్‌స్ట్రక్షన్ మాన్యువల్

పరిచయం

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your DEERC 209E 1:10 Fast Brushless RC Car. Please read this manual thoroughly before operating the vehicle.

Figure 1: DEERC 209E RC Car and included accessories.

భద్రతా సమాచారం

హెచ్చరిక:

• This product contains small parts and is not suitable for children under 14 years old as it may pose a choking hazard.
• Always operate the product under adult supervision, especially in areas with traffic or hazards.
• ఆపరేషన్‌కు ముందు అన్ని భాగాలు సురక్షితంగా అమర్చబడి ఉన్నాయని నిర్ధారించుకోండి.
• Avoid operating in wet conditions unless the vehicle is specifically designed for it (this model features IPX4 waterproofing for the ESC).
• చేతులు, ముఖం మరియు వదులుగా ఉండే దుస్తులను కదిలే భాగాలకు దూరంగా ఉంచండి.

సెటప్

1. అన్‌ప్యాకింగ్ మరియు కాంపోనెంట్ చెక్

Carefully remove all items from the packaging. Verify that all components listed below are present:

• 1 x Brushless RC Truck
• 2 x 3S Rechargeable Batteries
• 1 x Full Proportional 2.4Ghz Remote Control
• 1 x ఛార్జింగ్ కేబుల్
• 1 x Spare Kits (including 1 set of front swing arms)
• 1 x మాన్యువల్
• 1 x హెచ్చరిక కార్డు

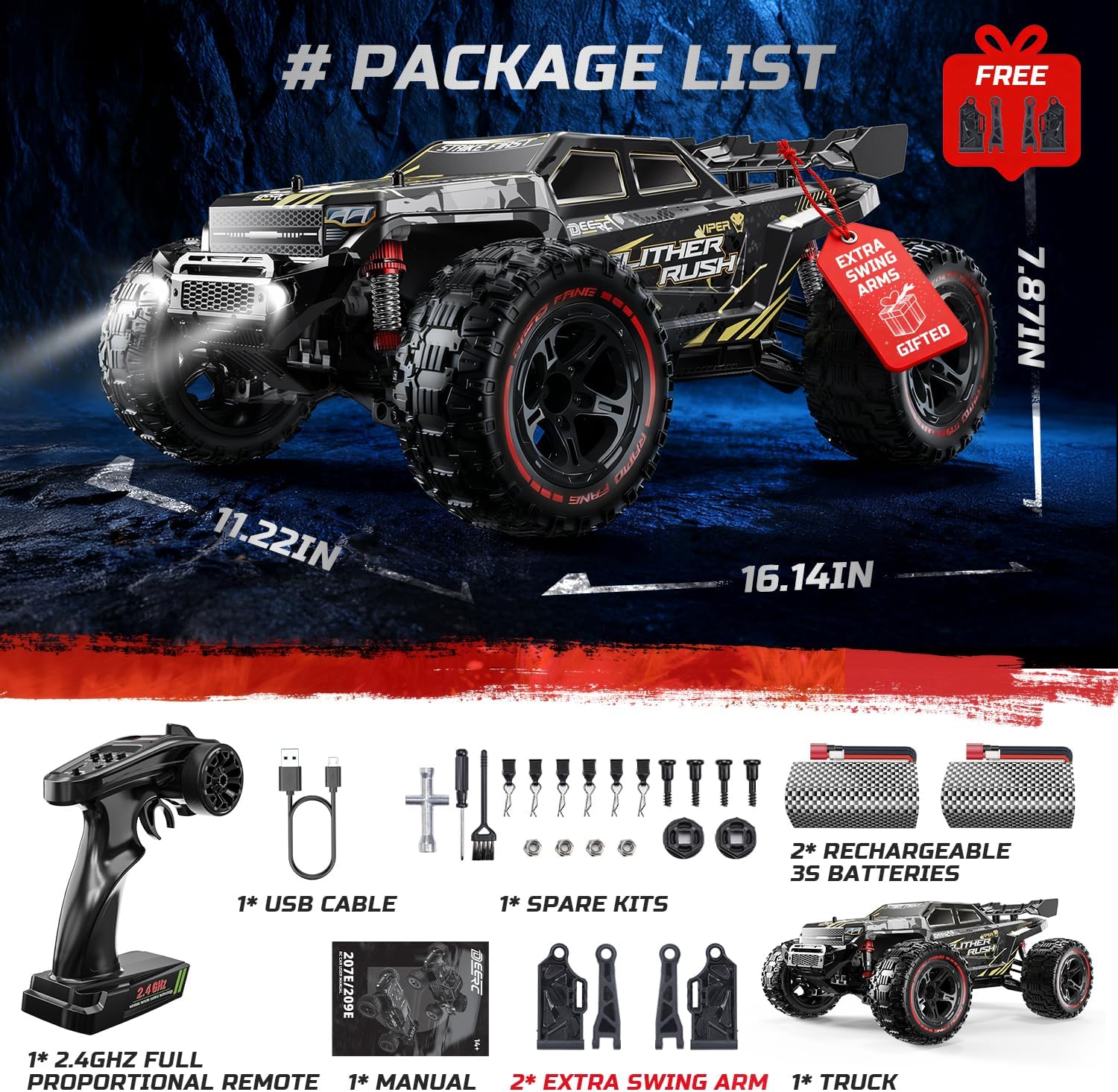

Figure 2: Contents of the DEERC 209E package.

2. బ్యాటరీ సంస్థాపన మరియు ఛార్జింగ్

1. రిమోట్ కంట్రోల్ బ్యాటరీలు: Install 2 AA batteries (not included) into the remote control. Ensure correct polarity.
2. వాహన బ్యాటరీలు: The DEERC 209E comes with two 3S 11.1V 1500mAh batteries. To install, remove the body clips and lift the car body. Securely place one battery into the battery compartment and connect the red plug to the vehicle's power connector.
3. ఛార్జింగ్: Use the provided charging cable to charge the 3S batteries. Connect the white balance plug of the battery to the charging cable, then connect the USB end to a suitable USB power adapter (e.g., phone charger, computer USB port). The indicator light on the charger will show charging status.

Figure 3: The DEERC 209E utilizes dual 3S rechargeable batteries for extended playtime.

3. Initial Power-Up and Binding

4. ముందుగా రిమోట్ కంట్రోల్ ఆన్ చేయండి.
5. Turn on the vehicle using the red ON/OFF switch located on the chassis.
6. The remote control and vehicle should automatically bind. If not, refer to the troubleshooting section.

Operating Your DEERC 209E

1. ప్రాథమిక నియంత్రణలు

• స్టీరింగ్ వీల్: వాహనాన్ని నడపడానికి ఎడమ లేదా కుడి వైపుకు తిరగండి.
• థొరెటల్ ట్రిగ్గర్: ముందుకు వేగవంతం చేయడానికి లాగండి, బ్రేక్ చేయడానికి లేదా రివర్స్ చేయడానికి నెట్టండి.
• స్పీడ్ అడ్జస్ట్‌మెంట్ డయల్: Located on the remote control, this dial allows you to adjust the maximum speed of the vehicle. Turn clockwise for faster speeds, counter-clockwise for slower speeds. This is useful for beginners or for operating in confined spaces.
• స్టీరింగ్ ట్రిమ్: Adjust if the vehicle pulls to one side when the steering wheel is centered.

2. ఆల్-టెర్రైన్ పనితీరు

The DEERC 209E is designed for all-terrain use, featuring 4WD and oil-filled shocks for superior handling on various surfaces including grass, dirt, gravel, and pavement. Its IPX4 waterproof ESC allows for operation in light wet conditions, but avoid full submersion.

Figure 4: Reinforced metal chassis and adjustable oil-filled shocks contribute to the vehicle's durability and performance.

3. డ్రైవింగ్ చిట్కాలు

• Start with the speed adjustment dial set to a lower speed until you are comfortable with the controls.
• Practice steering and throttle control in an open area free of obstacles.
• Avoid sudden stops or turns at high speeds to prevent rollovers.
• Regularly check battery levels to avoid unexpected power loss during operation.

నిర్వహణ

Regular maintenance ensures the longevity and optimal performance of your DEERC 209E RC Car.

• శుభ్రపరచడం: After each use, especially in dusty or muddy conditions, clean the vehicle using the provided brush or compressed air. Remove any debris from the chassis, wheels, and suspension components.
• బ్యాటరీ సంరక్షణ: Store batteries in a cool, dry place. Do not overcharge or over-discharge. Disconnect batteries from the vehicle when not in use.
• కాంపోనెంట్ చెక్: Periodically inspect all screws, nuts, and moving parts for looseness or damage. Tighten as necessary. The included spare parts kit contains extra swing arms for replacement if needed.
• Oil-Filled Shocks: Check the oil-filled shocks for leaks or reduced damping performance. Refill or replace as necessary to maintain smooth suspension.

Figure 5: Reinforced metal chassis and adjustable oil-filled shocks contribute to the vehicle's durability and performance.

ట్రబుల్షూటింగ్

స్పెసిఫికేషన్లు

Figure 6: Detailed technical specifications for the DEERC 209E.

వారంటీ & మద్దతు

For warranty information or technical support, please contact DEERC customer service. Many users have reported positive experiences with DEERC's customer service for parts and assistance.

You can often find contact information on the official DEERC webసైట్ లేదా మీ కొనుగోలు ప్లాట్‌ఫారమ్ ద్వారా.
