MakeSkyBlue 60A MPPT Solar Charge Controller V124 User Manual

1. పరిచయం

This manual provides detailed instructions for the installation, operation, and maintenance of your MakeSkyBlue 60A MPPT Solar Charge Controller V124. This device is designed to efficiently manage power flow from your solar panels to your battery bank, ensuring optimal charging and system protection. Please read this manual thoroughly before installation and use to ensure safe and correct operation.

2 కీ ఫీచర్లు

• 100% MPPT Controller: Features intelligent Maximum Power Point Tracking for high conversion efficiency and greater solar energy harvest. Includes a built-in DSP controller for fast response and stable performance.
• Upgraded Large-Terminal Design: Equipped with larger wiring ports for easier and more secure installation, improving current flow and system stability.
• విస్తృత బ్యాటరీ అనుకూలత: Supports 12V/24V/48V auto-recognition and is compatible with LiFePO₄, AGM, Gel, and Lead-Acid batteries.
• స్మార్ట్ LCD డిస్ప్లే: Easy-to-read backlit screen displays real-time system status, error codes, cumulative power generation, and adjustable parameters.

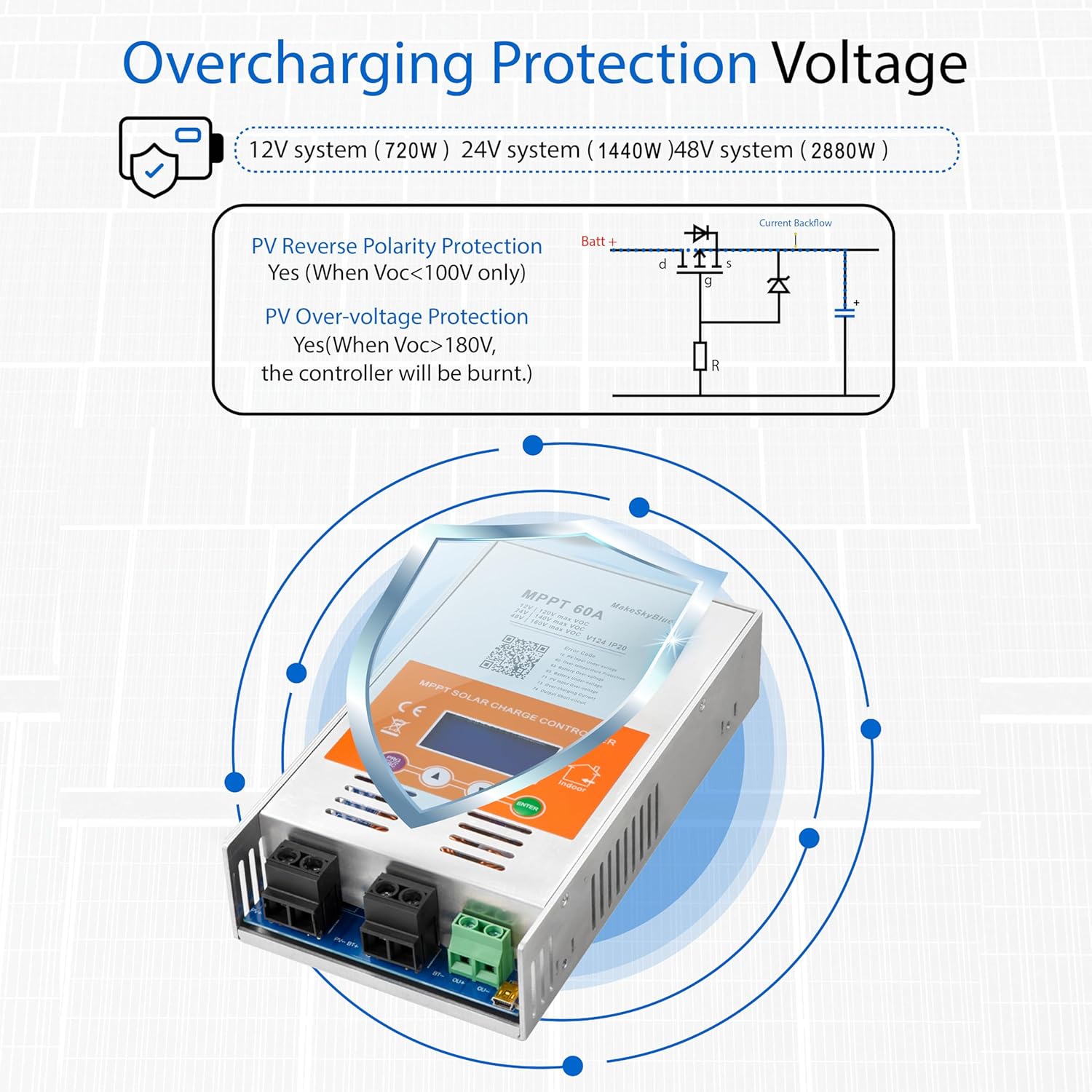

• తెలివైన బ్యాటరీ రక్షణ: Built-in safeguards protect against overcharging, overvoltage, short-circuit, and low voltage, extending battery life and ensuring safe operation.

3. భద్రతా సమాచారం

• Always connect the battery to the charge controller first, then the solar panels, and finally the load. Disconnect in reverse order.
• Ensure proper ventilation around the controller to prevent overheating. Maintain a minimum spacing of 75mm (3 inches) on all sides for adequate airflow.
• గరిష్ట PV ఇన్‌పుట్ వాల్యూమ్tage is 160V. Exceeding this voltage can damage the controller.
• అధిక వేడిని నివారించడానికి మరియు సమర్థవంతమైన విద్యుత్ బదిలీని నిర్ధారించడానికి అన్ని కనెక్షన్లకు తగిన వైర్ గేజ్‌లను ఉపయోగించండి.
• Install the controller in a dry, well-ventilated area, away from flammable materials and direct sunlight.
• కంట్రోలర్‌ను మీరే విడదీయడానికి లేదా మరమ్మతు చేయడానికి ప్రయత్నించవద్దు. సేవ కోసం అర్హత కలిగిన సిబ్బందిని సంప్రదించండి.

4. ఉత్పత్తి ముగిసిందిview

The MakeSkyBlue 60A MPPT Solar Charge Controller V124 is designed for robust performance and ease of use. Below are key visual references for the product and its components.

మూర్తి 4.1: ముందు view of the MakeSkyBlue 60A MPPT Solar Charge Controller V124, showing the LCD display, control buttons, and connection terminals.

Figure 4.2: Close-up of the controller's LCD display, detailing icons for daytime, charging, battery, discharging, load, parameter value, and current reading.

Figure 4.3: Physical dimensions (8.46 x 4.52 x 1.96 inches) and weight (3.08 lbs) of the MakeSkyBlue 60A MPPT Solar Charge Controller V124.

5. సెటప్ & ఇన్‌స్టాలేషన్

Follow these steps for safe and correct installation of your MPPT solar charge controller.

5.1 కంట్రోలర్‌ను మౌంట్ చేయడం

• Choose a dry, well-ventilated location, preferably indoors, away from direct sunlight, high temperatures, and moisture.
• Ensure there is at least 75mm (3 inches) of clear space around all sides of the controller for proper heat dissipation and airflow.
• Mount the controller securely to a wall or stable surface using appropriate screws and mounting brackets.

5.2 వైరింగ్ కనెక్షన్లు

Always connect in the following sequence: Battery → Solar Panels → DC Load. Disconnect in reverse order.

Figure 5.1: Diagram illustrating the connection of the MakeSkyBlue 60A MPPT Solar Charge Controller V124 to a bank of batteries, highlighting the solar input and battery connections.

• బ్యాటరీని కనెక్ట్ చేయండి: Connect the positive and negative terminals of your battery bank to the corresponding battery terminals on the charge controller. Ensure correct polarity. The controller will auto-detect the battery voltagఇ (12V/24V/48V).
• సోలార్ ప్యానెల్‌లను కనెక్ట్ చేయండి: Connect the positive and negative leads from your solar panel array to the PV input terminals on the controller. Ensure correct polarity and that the total PV open-circuit voltagఇ 160V మించదు.
• Connect DC Load (Optional): If using a DC load directly from the controller, connect its positive and negative leads to the load terminals.

5.3 Parallel Operation (If applicable)

For systems requiring multiple controllers in parallel, follow the guidelines provided in the video below. Each controller should be connected to the same battery bank, with individual connections to separate photovoltaic arrays.

5.4 Unboxing and Basic Connections

For a visual guide on unboxing and making basic connections, refer to the following video:

6. ఆపరేటింగ్ సూచనలు

The controller features a smart LCD display for monitoring and adjusting parameters.

6.1 LCD డిస్ప్లే ఓవర్view

Figure 6.1: Close-up of the controller's LCD display, detailing icons for daytime, charging, battery, discharging, load, parameter value, and current reading.

The LCD display provides real-time information about your solar system's performance. Use the buttons below the screen to navigate through different display modes and access settings.

6.2 పారామీటర్ సెట్టింగ్‌లు

To adjust parameters such as battery type, charge voltage, and load control modes, press the 'PRG/ESC' button to enter the programming mode. Use the up/down arrows to navigate and 'ENTER' to confirm selections. Refer to the full user manual for a complete list of adjustable parameters and their ranges.

6.3 MPPT Tracking Demonstration

Observe the controller's efficient MPPT tracking and stable power output in the demonstration video below.

7. బ్యాటరీ అనుకూలత

The MakeSkyBlue 60A MPPT Solar Charge Controller V124 offers wide compatibility with various battery types, automatically recognizing 12V, 24V, and 48V systems.

Figure 7.1: Visual representation of battery types compatible with the controller, including Lithium, Sealed Lead Acid, and Vented Gel batteries.

Supported battery chemistries include:

• LiFePO₄ (లిథియం ఐరన్ ఫాస్ఫేట్)
• AGM (అబ్సోర్బ్డ్ గ్లాస్ మ్యాట్)
• జెల్
• లెడ్-యాసిడ్

8. ట్రబుల్షూటింగ్

The Smart LCD Display can show various error codes to help diagnose issues. Refer to the QR code on the product label or the full user manual for a comprehensive list of error codes and their solutions. Common issues and basic checks include:

• డిస్ప్లే/పవర్ లేదు: Check battery connections and ensure they are secure and correctly polarized. Verify battery voltage ఆపరేటింగ్ పరిధిలో ఉంది.
• ఛార్జింగ్ లేదు: Check solar panel connections and polarity. Ensure sufficient sunlight. Verify PV input voltage is within the controller's specifications (Max 160V).
• Overcharging/Overvoltage: The controller has built-in protection. If this occurs, check battery settings and ensure they match your battery type.
• అధిక ఉష్ణోగ్రత: Ensure adequate ventilation around the controller. Check for obstructions to airflow. The fan will activate to dissipate heat when necessary.

Figure 8.1: Illustration of the controller's temperature protection, showing fan activation and deactivation temperatures.

9. స్పెసిఫికేషన్లు

Detailed technical specifications for the MakeSkyBlue 60A MPPT Solar Charge Controller V124.

10. వారంటీ & సపోర్ట్

Specific warranty information for the MakeSkyBlue 60A MPPT Solar Charge Controller V124 is not provided in this document. For warranty details, technical support, or service inquiries, please contact MakeSkyBlue customer service directly through their official website or the retailer where the product was purchased. Ensure you have your product model number and purchase date available when contacting support.
