1. పరిచయం
The Optus Radio Weather Station Model 15298 provides accurate monitoring of indoor and outdoor climate conditions. This device features a DCF radio-controlled clock for automatic time and date setting, a frost alarm, and graphical weather forecasts. It is designed for convenient daily use in both home and office environments, offering reliable data on temperature and humidity.
2. ప్యాకేజీ విషయాలు
- 1x బేస్ స్టేషన్
- 1x Wireless Sensor
- 4x AAA బ్యాటరీలు
- 1x ఇన్స్ట్రక్షన్ మాన్యువల్
3. ఉత్పత్తి లక్షణాలు
- Indoor and outdoor temperature display (°C/°F)
- అంతర్గత మరియు బాహ్య తేమ ప్రదర్శన
- Graphical weather forecasts with atmospheric pressure indicator
- Storage of maximum and minimum values for temperature and humidity
- Frost alarm function
- Integrated alarm clock with snooze function
- Automatic time and date setting (DCF radio control)
- Backlight for enhanced readability
- Wireless sensor with up to 80m range
- Splash-proof outdoor sensor (IP44)
Image 1: Optus Radio Weather Station (Base Station and Wireless Sensor)

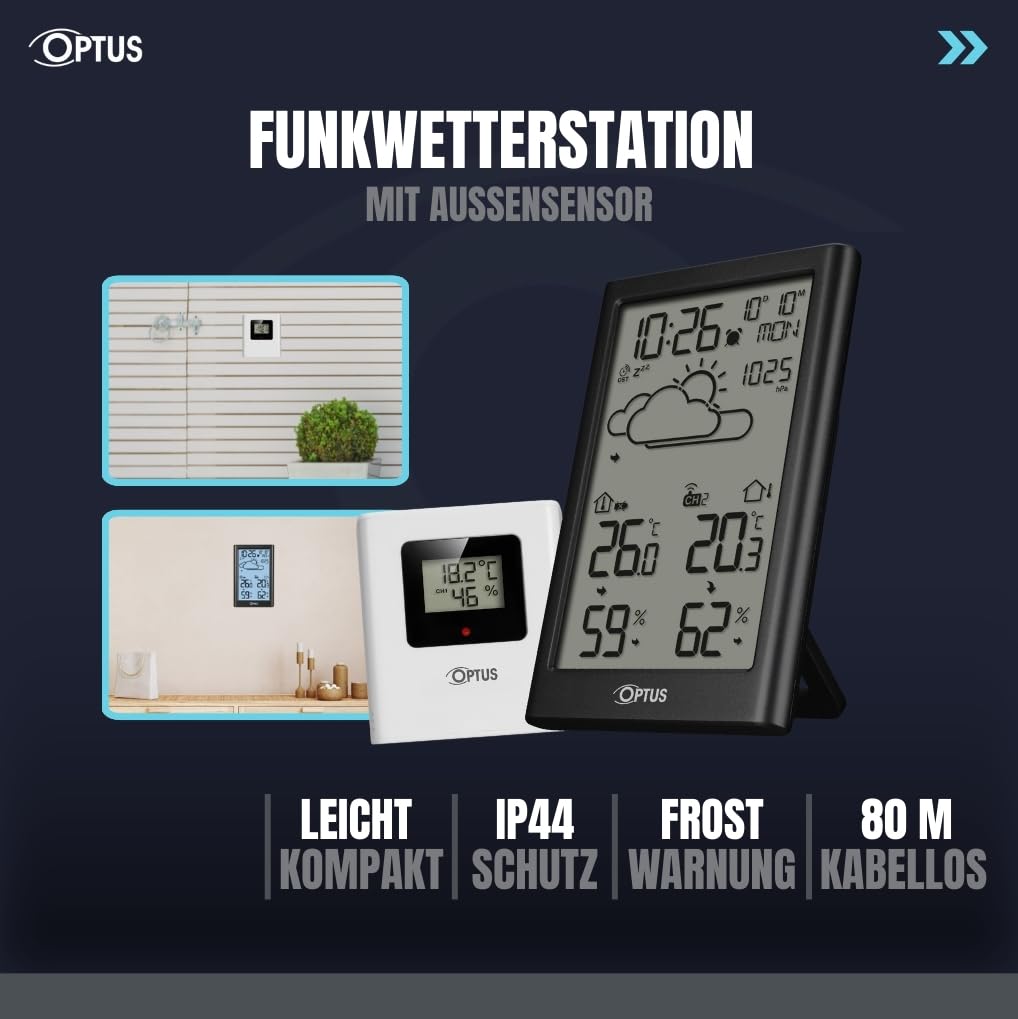

Image 2: The weather station and its outdoor sensor, illustrating flexible placement options indoors and outdoors.

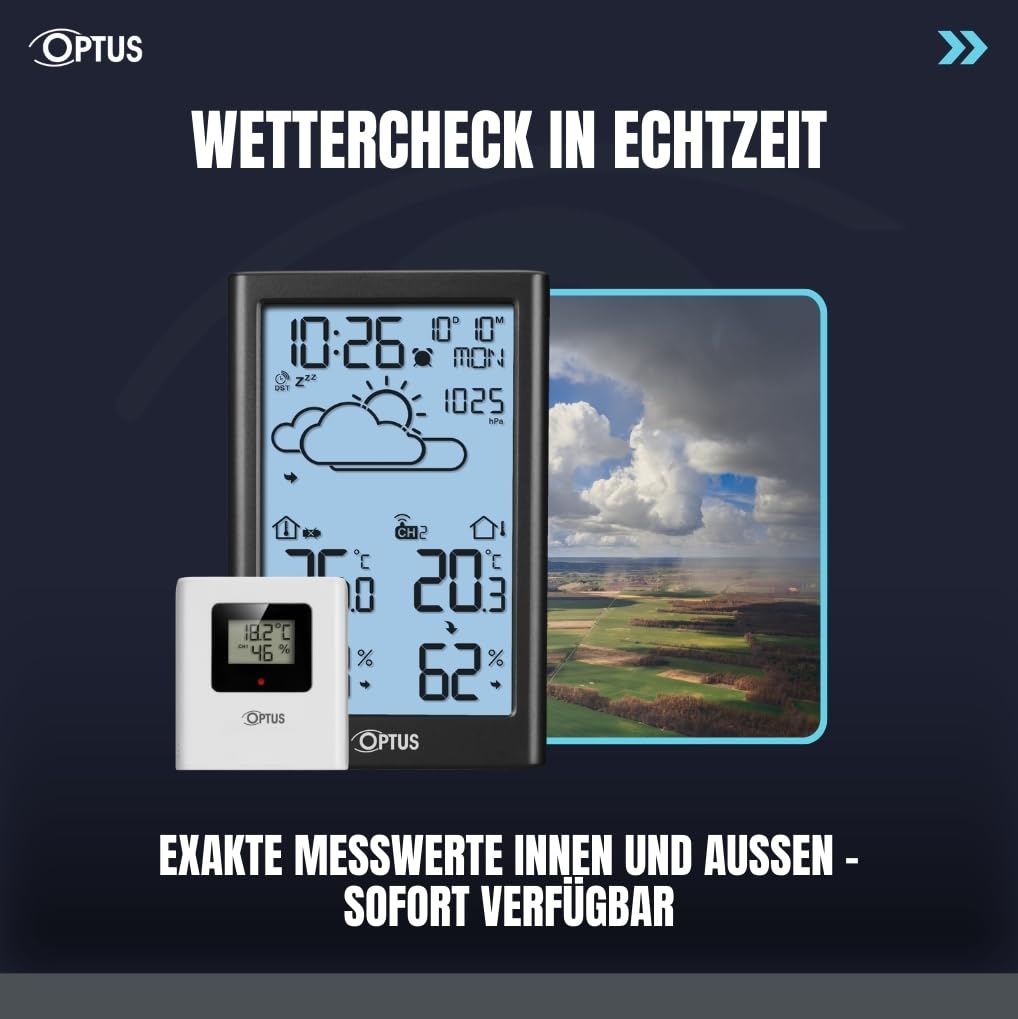

Image 3: The weather station displaying real-time indoor and outdoor temperature and humidity, with a graphical weather forecast.
4. సెటప్
4.1. బ్యాటరీ ఇన్స్టాలేషన్
- బేస్ స్టేషన్ వెనుక భాగంలో బ్యాటరీ కంపార్ట్మెంట్ తెరవండి.
- Insert 3x AAA batteries (not included) into the base station, observing correct polarity (+/-).
- బ్యాటరీ కంపార్ట్మెంట్ను మూసివేయండి.
- వైర్లెస్ సెన్సార్ వెనుక బ్యాటరీ కంపార్ట్మెంట్ను తెరవండి.
- Insert 2x AAA batteries (not included) into the wireless sensor, observing correct polarity (+/-).
- బ్యాటరీ కంపార్ట్మెంట్ను మూసివేయండి.
4.2. ప్రారంభ సమకాలీకరణ
After inserting batteries, the base station will automatically search for the wireless sensor and the DCF radio signal. This process may take a few minutes. Ensure the sensor is within range (up to 80m) of the base station.
4.3. సెన్సార్ ప్లేస్మెంట్
Place the wireless sensor in a location that provides accurate outdoor readings, away from direct sunlight and precipitation. The sensor is splash-proof (IP44) but should be protected from extreme weather conditions for optimal performance and longevity.
చిత్రం 4: వెనుక view of the base station, highlighting the battery compartment and control buttons.
5. ఆపరేటింగ్ సూచనలు
5.1. Time and Date Setting (DCF)
The device automatically sets the time and date via the DCF radio signal. If manual adjustment is needed, refer to the detailed instructions in the included manual.
5.2. ఉష్ణోగ్రత మరియు తేమ ప్రదర్శన
The display shows current indoor and outdoor temperature and humidity. Use the designated buttons (refer to the full manual for specific button functions) to switch between Celsius (°C) and Fahrenheit (°F).
5.3. Max/Min Records
The weather station stores maximum and minimum temperature and humidity values. Press the appropriate button to view these records. To reset the records, press and hold the button (refer to the full manual).
5.4. Frost Alarm
The frost alarm activates when outdoor temperatures approach freezing. An indicator will appear on the display to alert you to potential frost conditions.
5.5. Alarm Clock and Snooze
Set the integrated alarm clock as needed. The snooze function allows for a temporary delay of the alarm. Refer to the full manual for detailed alarm setting instructions.
5.6 బ్యాక్లైట్
The display features a backlight for improved visibility in low-light conditions. Activate the backlight using the designated button (refer to the full manual).
6. నిర్వహణ
- Clean the device and sensor with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Avoid exposing the base station to direct sunlight or extreme temperatures.
- Replace batteries when the low battery indicator appears on the display to ensure continuous operation and accurate readings.
- Ensure the outdoor sensor's vents are clear of debris for accurate humidity readings.
7. ట్రబుల్షూటింగ్
7.1. No Outdoor Temperature/Humidity Display
- Check if the wireless sensor batteries are correctly installed and not depleted.
- Ensure the sensor is within the 80m transmission range of the base station.
- Relocate the sensor or base station to minimize interference from other electronic devices or large metal objects.
- Manually re-synchronize the sensor with the base station (refer to the full manual for specific steps).
7.2. Incorrect Time/Date
- Ensure the base station is placed in an area where it can receive the DCF radio signal. Avoid placing it near electronic devices that may cause interference.
- Allow up to 24 hours for the device to receive and synchronize with the DCF signal.
- If the signal is consistently weak, manual time and date setting may be required (refer to the full manual).
8. స్పెసిఫికేషన్లు
- బ్రాండ్: ఆప్టస్
- మోడల్ సంఖ్య: 15298
- Power Source (Base Station): Power adapter (included) and 3x AAA backup batteries (not included)
- Power Source (Sensor): 2x AAA బ్యాటరీలు (చేర్చబడలేదు)
- కనెక్టివిటీ టెక్నాలజీ: రేడియో ఫ్రీక్వెన్సీ (RF)
- Wireless Sensor Range: 80 మీటర్ వరకు
- Sensor Protection Class: IP44 (స్ప్లాష్ ప్రూఫ్)
- సెన్సార్ కొలతలు: 71 x 65 x 23 మిమీ
- సెన్సార్ బరువు: 44 గ్రా
- ప్యాకేజీ కొలతలు: 26.3 x 16.3 x 4.3 సెం.మీ
- ప్రత్యేక లక్షణాలు: DCF Radio Clock, Date, Time, Graphical Weather Forecast, Backlight, Alarm Clock, Max/Min Value Storage, Weekday Display, Frost Alarm
Image 5: Detailed dimensions of the Optus Weather Station base unit and its wireless outdoor sensor.
9. వారంటీ మరియు మద్దతు
For warranty information and technical support, please refer to the contact details provided in the original product packaging or visit the official Optus webసైట్. కొనుగోలు రుజువుగా మీ కొనుగోలు రసీదుని ఉంచండి.
