TORRAS PolarCircle Qi2.2 Wireless Charger (Model wx3a) Instruction Manual

1. ఉత్పత్తి ముగిసిందిview

The TORRAS PolarCircle Qi2.2 Wireless Charger is an advanced charging solution designed for efficiency and device longevity. It integrates 25W ultra-fast wireless charging with a TEC semiconductor cooling chip and a 45W IceNano cooling plug to prevent overheating and extend battery life. The charger also features a versatile 360° adjustable stand for various usage scenarios.

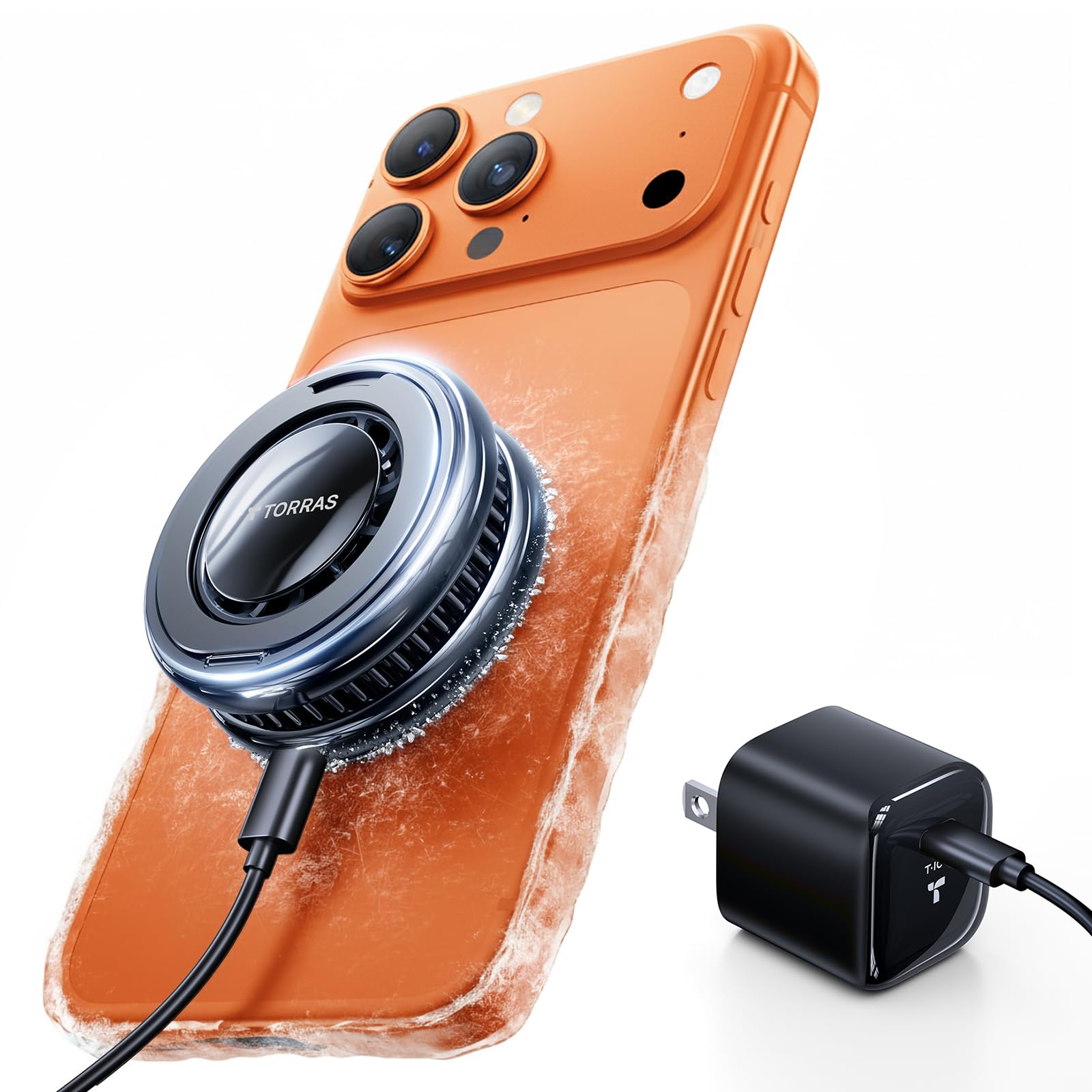

Image 1.1: The TORRAS PolarCircle Qi2.2 Wireless Charger attached to a smartphone, showcasing its sleek design and cooling capabilities.

ముఖ్య లక్షణాలు:

• Qi2.2 25W Ultra-Fast Wireless Charging: Experience rapid and efficient power delivery.
• TEC Semiconductor Cooling Chip: Actively dissipates heat to maintain optimal device temperature.
• 45W IceNano Cooling Plug: Provides stable and powerful cooling support, enhancing charging efficiency.
• 360° Adjustable Spin Stand: సౌకర్యవంతమైన ఆఫర్లు viewing angles for various uses like gaming, video watching, or as a bedside clock.
• Battery Health Care: Low-temperature charging helps prevent battery aging and extends phone lifespan.
• అయస్కాంత అమరిక: Ensures secure and precise attachment for stable charging.

2. ప్యాకేజీ విషయాలు

Upon opening your TORRAS PolarCircle Qi2.2 Wireless Charger package, you should find the following items:

• TORRAS PolarCircle Qi2.2 Wireless Charger (Model wx3a)
• USB టైప్-సి ఛార్జింగ్ కేబుల్
• 45W IceNano Power Adapter
• వినియోగదారు మాన్యువల్

Image 2.1: The package includes the 25W cooling wireless charger, a USB-C cable, and a 45W fast-charging plug.

3. సెటప్ గైడ్

3.1 పవర్‌కు కనెక్ట్ చేస్తోంది

1. Connect the provided USB Type-C cable to the charging port on the TORRAS PolarCircle Wireless Charger.
2. Plug the other end of the USB Type-C cable into the 45W IceNano Power Adapter.
3. Insert the power adapter into a wall outlet. The charger's indicator light will illuminate, confirming it is powered on.

గమనిక: For optimal 25W fast charging and effective cooling, use the included 45W IceNano Power Adapter or a compatible power adapter with at least 30W Power Delivery (PD) output.

Image 3.1: The charger connected to its power adapter, ready for use.

3.2 మీ పరికరాన్ని అటాచ్ చేయడం

The PolarCircle Wireless Charger features strong magnetic alignment for secure attachment.

1. Ensure your smartphone is MagSafe compatible or has a MagSafe-compatible case.
2. Align the back of your smartphone with the charging surface of the PolarCircle Wireless Charger. The magnets will automatically snap into place, ensuring proper alignment for charging.

Image 3.2: Magnetic attachment of the charger to a smartphone.

4. ఆపరేటింగ్ సూచనలు

4.1 Initiating Charging and Cooling

• Once your device is magnetically attached and the charger is powered, charging will begin automatically.
• The TEC semiconductor cooling chip and turbine fan will activate to provide active cooling, indicated by the blue LED light.

4.2 Using the 360° Spin Stand

The integrated 360° rotating stand allows for flexible positioning of your device.

• Gently pull out the ring stand from the back of the charger.
• Rotate the stand to achieve your desired viewing angle, whether vertical for video calls or horizontal for watching videos and gaming.

Image 4.2: The 360° adjustable stand provides versatile viewing options for various activities.

4.3 Sleep Mode (Turning Off Cooling Fan)

If you prefer silent charging or do not require active cooling, you can disable the fan.

• Press and hold the small button located on the side of the charger for approximately 3 seconds.
• The cooling fan will turn off, and the LED light will extinguish, indicating sleep mode. Charging will continue without active cooling.
• To reactivate the cooling fan, press and hold the button again for 3 seconds.

Image 4.3: Instructions for activating Sleep Mode to turn off the cooling fan.

5. నిర్వహణ

To ensure the longevity and optimal performance of your TORRAS PolarCircle Wireless Charger, follow these maintenance guidelines:

• శుభ్రపరచడం: ఛార్జర్ ఉపరితలాన్ని తుడవడానికి మృదువైన, పొడి వస్త్రాన్ని ఉపయోగించండి. రాపిడి క్లీనర్లు లేదా ద్రావకాలను ఉపయోగించడం మానుకోండి.
• Fan Care: Periodically check the cooling fan vents for dust or debris. Gently clean with a soft brush or compressed air to ensure unobstructed airflow.
• నిల్వ: ఉపయోగంలో లేనప్పుడు, ఛార్జర్‌ను ప్రత్యక్ష సూర్యకాంతి మరియు విపరీతమైన ఉష్ణోగ్రతల నుండి దూరంగా చల్లని, పొడి ప్రదేశంలో నిల్వ చేయండి.

6. ట్రబుల్షూటింగ్

6.1 పరికరం ఛార్జ్ అవ్వడం లేదు

• పవర్ కనెక్షన్: Ensure the USB Type-C cable is securely connected to both the charger and the power adapter, and the adapter is firmly plugged into a working wall outlet.
• పవర్ అడాప్టర్: Verify that you are using the included 45W IceNano Power Adapter or a compatible 30W+ PD adapter. Lower wattage adapters may not provide sufficient power.
• పరికర అమరిక: Confirm that your smartphone is correctly aligned with the magnetic charging surface. The magnets should snap into place.
• ఫోన్ కేసు: If using a phone case, ensure it is MagSafe compatible and not excessively thick, which could interfere with wireless charging.

6.2 Device Overheating During Charging

• Cooling Fan Activation: Ensure the cooling fan is active (blue LED light on). If not, press and hold the side button for 3 seconds to activate it.
• వాయు ప్రవాహ అవరోధం: Check that the fan vents are not blocked by dust, debris, or other objects.
• పర్యావరణం: Avoid charging in extremely hot environments or direct sunlight.

6.3 Fan Noise is Too Loud

• స్లీప్ మోడ్: If the fan noise is bothersome, activate Sleep Mode by pressing and holding the side button for 3 seconds. This will turn off the fan while charging continues.

6.4 Weak Magnetic Hold

• ఫోన్ కేసు: Ensure your phone case is MagSafe compatible. Non-MagSafe cases may not provide sufficient magnetic strength.
• విదేశీ వస్తువులు: Check for any foreign objects between the charger and your phone/case that might interfere with the magnetic connection.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

TORRAS is committed to providing high-quality products and excellent customer service.

• వారంటీ: The Qi2.2 wireless charger is guaranteed by FCC, UL, TUV, DOE, CEC, UN, and RoHS certificates.
• Care & Support: We offer an 18-month care period and 7x24 hours lifetime professional support.
• రాబడులు & మార్పిడి: Free returns and exchanges are available on TORRAS magnetic accessories.

For any issues or inquiries, please contact TORRAS customer support. You can also visit the Official TORRAS Store on Amazon మరింత సమాచారం మరియు సహాయం కోసం.
