Aoocci C7 Motorcycle CarPlay/Android Auto Navigation System User Manual

1. పరిచయం

The Aoocci C7 is a 7-inch HD touchscreen navigation system designed for motorcycles, offering seamless integration with Apple CarPlay and Android Auto. This device provides GPS navigation, music playback, messaging, and hands-free calling capabilities, enhancing your riding experience. Its IP67 waterproof rating and extreme temperature resistance ensure durability in various weather conditions. This manual provides detailed instructions for setup, operation, and maintenance of your Aoocci C7 system.

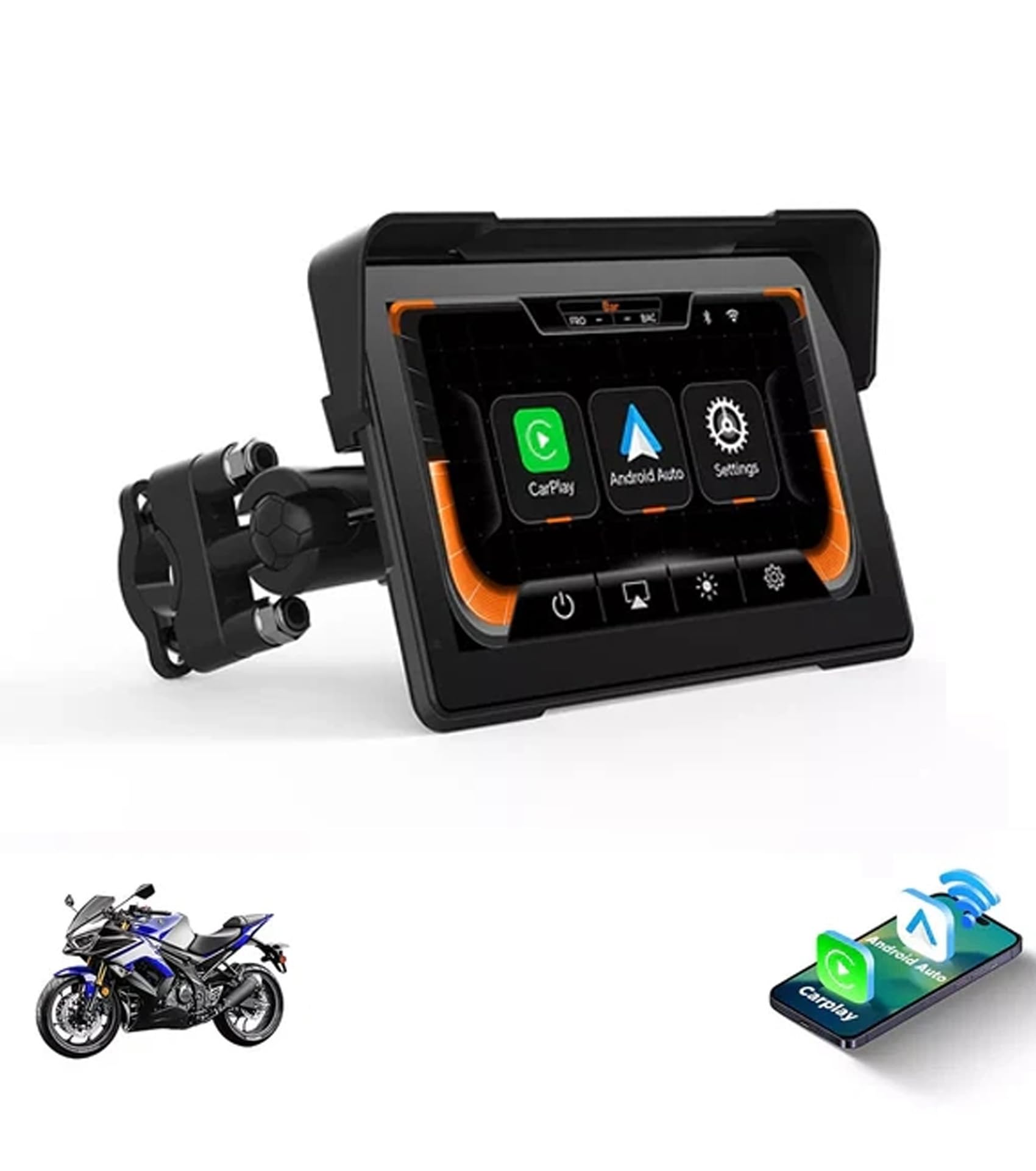

Image: Aoocci C7 7-inch Touchscreen Motorcycle Internet Navigation System. This image shows the device with a motorcycle in the background, highlighting its 7-inch touchscreen display.

2. పెట్టెలో ఏముంది

Upon opening your Aoocci C7 package, please verify that all the following components are included:

• 7 inch Motorcycle carplay screen
• పవర్ కేబుల్
• Mount & TPMS (Note: TPMS is optional and may not be included in all C7 models)
• వైరింగ్ హార్నెస్
• ఉపకరణాలు మరియు సాధనాలు

Image: Aoocci C7 Parts & Accessories. This image displays the main unit along with the power cable, mounting hardware, and other included tools.

3. సెటప్ సూచనలు

3.1 పరికరాన్ని మౌంట్ చేయడం

The Aoocci C7 features a universal butterfly clamp mount, designed to fit handlebars with diameters ranging from 11mm to 28mm. Follow these steps for secure installation:

1. Use the provided wrench to install the bracket onto your motorcycle's handlebar. Ensure it is securely tightened.
2. Install the connecting rod onto the bracket. The mount is 360° adjustable for optimal viewing కోణాలు.
3. Install the CarPlay screen onto the mount and adjust it to the desired position. Tighten the adjustment ring to fix it in place.
4. Ensure all connections are firm and the device is stable before riding.

Image: Aoocci C7 Installation Instruction. This graphic illustrates the step-by-step process of mounting the device to a motorcycle handlebar and connecting the power.

3.2 పవర్ కనెక్షన్

The device requires a 12V power connection. The low-power design (12V/0.8A) ensures hassle-free installation. Connect the red wire (ACC) to the motorcycle's positive power terminal and the black wire (GND) to the negative terminal.

4. ఆపరేటింగ్ సూచనలు

4.1 వైర్‌లెస్ కార్‌ప్లే & ఆండ్రాయిడ్ ఆటో కనెక్షన్

The Aoocci C7 supports wireless Apple CarPlay and Android Auto, allowing you to connect your smartphone via Bluetooth and Wi-Fi for navigation, music, messaging, and hands-free calls.

1. On the Aoocci C7 screen, select either 'CarPlay' or 'Android Auto'.
2. On your smartphone, turn on Bluetooth and Wi-Fi.
3. కోసం వెతకండి and select the device's Bluetooth name (e.g., 'CAR-BT-XXX') from your phone's Bluetooth settings to pair.
4. Confirm the pairing request on both devices. Once connected, CarPlay or Android Auto will launch automatically.

Image: Aoocci C7 Apple CarPlay Connection Steps. This image illustrates the four steps to connect an iPhone to the Aoocci C7 for CarPlay functionality.

Image: Aoocci C7 CarPlay & Android Auto Interface. This image shows the device displaying navigation and media playback interfaces for both CarPlay and Android Auto.

4.2 Smartphone Mirror Link

The Aoocci C7 supports Mirror Link for most Apple and Android smartphones. This feature allows you to display your phone's screen directly on the CarPlay unit, enabling access to apps like YouTube, maps, and more.

4.3 GPS నావిగేషన్

Utilize your smartphone's GPS capabilities through CarPlay or Android Auto to find optimal routes. The 7-inch HD display provides clear and easy-to-read navigation instructions.

4.4 Dual Bluetooth Support

The device supports dual Bluetooth, allowing you to connect your phone to the C7 and then connect a Bluetooth helmet or headset to your phone. This setup enables audio output for music and calls directly to your helmet.

Image: Aoocci C7 Bluetooth Helmet Setup. This image illustrates the connection flow from the CarPlay unit to a phone, and then to a Bluetooth helmet or headset.

5. నిర్వహణ

The Aoocci C7 is designed for all-weather durability with an IP67 waterproof rating, protecting it against rain, dust, and vibrations. It also withstands extreme temperatures from -20°C to 70°C (-4°F to 158°F).

• శుభ్రపరచడం: ఒక మృదువైన ఉపయోగించండి, డిamp cloth to clean the screen and exterior. Avoid harsh chemicals or abrasive materials.
• నిల్వ: ఎక్కువసేపు ఉపయోగంలో లేనప్పుడు, పరికరాన్ని ప్రత్యక్ష సూర్యకాంతి నుండి దూరంగా చల్లని, పొడి ప్రదేశంలో నిల్వ చేయండి.
• కేబుల్ తనిఖీ: Periodically check power cables and connections for any signs of wear or damage.

Image: Aoocci C7 IP67 Waterproof & Heat-Resistant Design. This image demonstrates the device's durability in various weather conditions, including rain, snow, and hot sun.

6. ట్రబుల్షూటింగ్

If you encounter issues with your Aoocci C7, please refer to the following common troubleshooting steps:

• పరికరం ఆన్ చేయడం లేదు: Ensure the power cable is correctly connected to the motorcycle's 12V power source and the device. Check for any loose connections or blown fuses.
• Cannot connect to CarPlay/Android Auto: Verify that Bluetooth and Wi-Fi are enabled on your smartphone and the Aoocci C7. Ensure your phone is discoverable and try re-pairing the devices. Clear previous connection history on the C7 if necessary.
• ఆడియో లేదు: Check the volume settings on both the Aoocci C7 and your connected smartphone/helmet headset. Ensure your Bluetooth headset is properly paired and connected to your phone.
• స్క్రీన్ స్పందించడం లేదు: Try restarting the device by turning off and on your motorcycle's ignition. If the issue persists, perform a factory reset (refer to the settings menu).
• GPS సిగ్నల్ సమస్యలు: పరికరం స్పష్టంగా ఉందని నిర్ధారించుకోండి view of the sky. If using your phone's GPS, check your phone's location services settings.

7. స్పెసిఫికేషన్లు

8. వారంటీ సమాచారం

The Aoocci C7 comes with a 12 నెలల వారంటీ from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Aoocci webసైట్ లేదా కస్టమర్ సపోర్ట్‌ని సంప్రదించండి.

9. కస్టమర్ మద్దతు

For further assistance, technical support, or inquiries regarding your Aoocci C7, please visit the official Aoocci Store or contact our customer service team.
