ULANZI YF01 Camera Strap Instruction Manual

1. పరిచయం

The ULANZI YF01 Camera Strap is a versatile 3-in-1 modular system designed for photographers and content creators. It combines a comfortable shoulder strap, a secure wrist strap, and an integrated charging/data cable, offering flexibility and convenience for various shooting styles and accessory management.

Figure 1: The ULANZI YF01 strap in Classic Black, worn as a shoulder strap with a camera.

2. భాగాలు ఓవర్view

The ULANZI YF01 strap system includes the following main components:

• ప్యాడెడ్ షోల్డర్ స్ట్రాప్: పొడిగించిన దుస్తులు ధరించేటప్పుడు సౌకర్యాన్ని అందిస్తుంది.
• Extendable Wrist Strap: Offers a secure grip for handheld use.
• Integrated USB-C Data Cable: ఛార్జింగ్ మరియు డేటా బదిలీ కోసం.
• త్వరిత విడుదల కనెక్టర్లు: For fast attachment and detachment.
• బహుళ మౌంటు పాయింట్లు: For attaching small accessories.

Figure 2: Modular design components of the YF01 strap, including the pressure-relief shoulder strap, extendable wrist strap, high-speed charging cable, and mounting points for small gear.

3. అసెంబ్లీ మరియు సెటప్

3.1 Attaching the Strap to Your Device

1. Identify the attachment points on your camera or device.
2. Press the red button on the quick-release connector to open the latch.
3. Thread the thin cord loop through your device's strap lug.
4. Secure the quick-release connector by snapping it back into place. Ensure it is firmly locked.

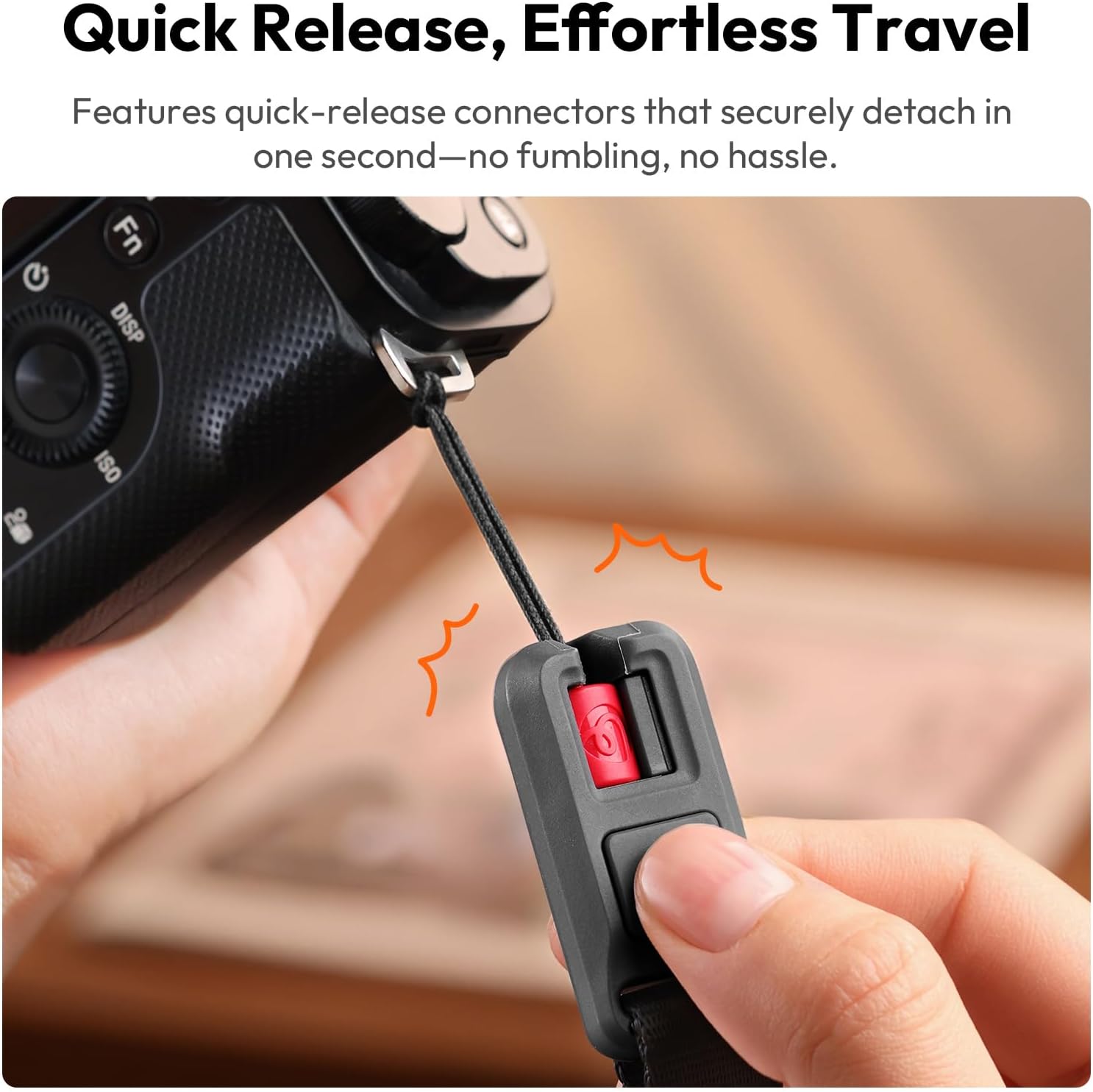

Figure 3: The quick-release connectors allow for instant attachment and detachment of the strap.

3.2 Converting Between Shoulder and Wrist Strap Modes

The YF01 strap can be easily reconfigured:

• Shoulder Strap Mode: Attach both ends of the main strap to your camera for shoulder or cross-body carry.
• Wrist Strap Mode: Detach one end of the main strap. The integrated data cable section can function as a standalone wrist strap.

Figure 4: Various ways to use the YF01 strap: as a camera wrist strap, camera shoulder strap, phone shoulder strap, and phone wrist strap.

3.3 Using as a Bag Strap

To convert the YF01 into a bag strap, simply detach the quick-release connectors from your camera and attach them to the loops on your bag.

Figure 5: The YF01 strap can be converted into a bag strap by attaching its ends to bag loops.

4. ఆపరేటింగ్ సూచనలు

4.1 Using the Integrated Data Cable

The YF01 strap features a built-in USB 2.0 Type-C cable with 480Mbps high-speed transfer capabilities. This allows you to:

• ఛార్జ్ పరికరాలు: Connect the USB-C ends to a power source and your device (e.g., camera, smartphone) for charging.
• బదిలీ డేటా: Connect your camera to a smartphone or other compatible device to transfer photos and videos directly.

Figure 6: The integrated USB 2.0 Type-C cable provides 480Mbps high-speed transfer for charging devices or transferring photos.

4.2 Adjusting the Strap Length

The strap offers a length range of 1300-1500mm (51.18-59.05 inches) with precision macro-adjustments. Slide the adjusters along the strap to achieve your desired length for shoulder, cross-body, or wrist carry.

4.3 అదనపు ఉపకరణాలను అటాచ్ చేయడం

Utilize the integrated attachment system (carabiners and loops) on the strap to securely mount small items such as keys, earbud cases, or other small gear.

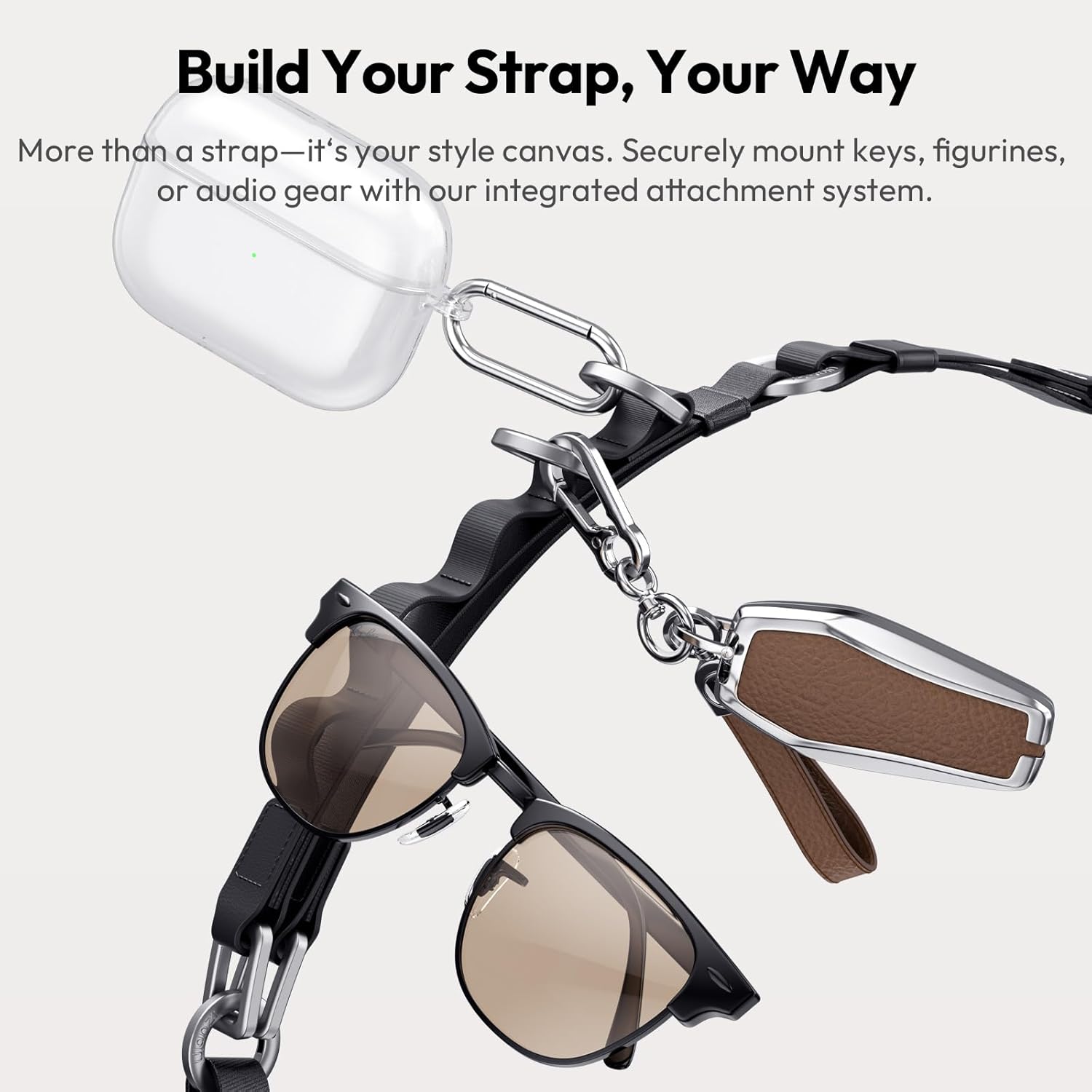

Figure 7: The integrated attachment system allows for securely mounting small accessories like keys, figurines, or audio gear.

5. ఎర్గోనామిక్స్ మరియు కంఫర్ట్

The YF01 strap is designed with an ergonomic shoulder pad to distribute weight effectively, reducing pressure on your shoulders. The shoulder pad consists of Eco Silicone Leather, Cushioning TPE, and Plush Microfiber layers for enhanced comfort.

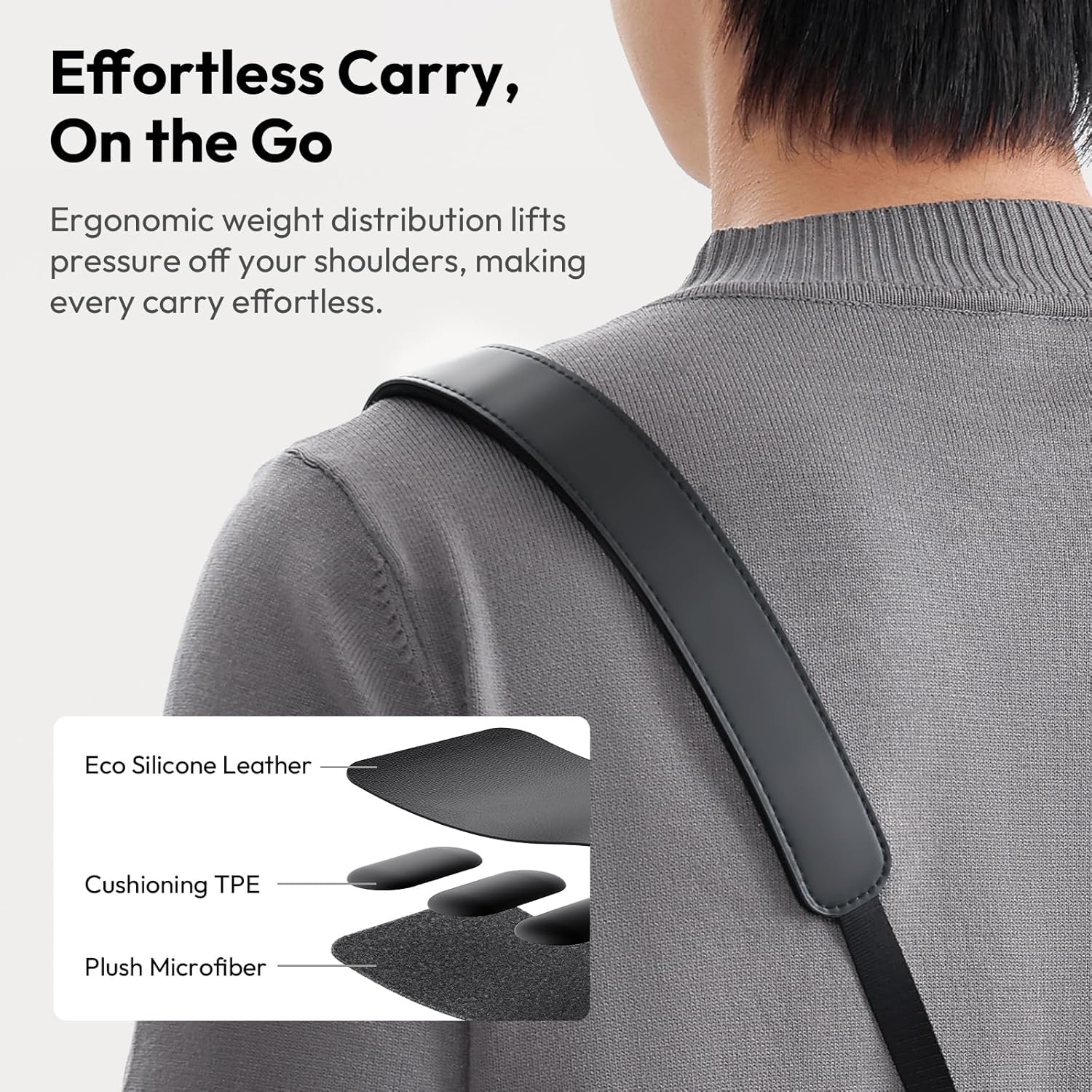

Figure 8: The shoulder pad features Eco Silicone Leather, Cushioning TPE, and Plush Microfiber for ergonomic weight distribution and comfort.

6. నిర్వహణ

To ensure the longevity and performance of your ULANZI YF01 Camera Strap, follow these care instructions:

• శుభ్రపరచడం: Hand wash only. Use mild soap and cold water. Do not machine wash or tumble dry.
• ఎండబెట్టడం: Air dry completely before storage or reuse. Avoid direct sunlight or high heat.
• నిల్వ: ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతల నుండి దూరంగా చల్లని, పొడి ప్రదేశంలో నిల్వ చేయండి.
• తనిఖీ: Regularly inspect the quick-release connectors and strap material for any signs of wear or damage. Discontinue use if damage is observed.

7. ట్రబుల్షూటింగ్

If you encounter any issues with your ULANZI YF01 Camera Strap, consider the following:

• Strap Detaching Unexpectedly: Ensure the quick-release connectors are fully engaged and locked. Check for any obstructions or damage to the locking mechanism.
• Data Transfer/Charging Issues: Verify that both ends of the USB-C cable are securely connected to compatible devices. Ensure the devices support the power and data transfer specifications. Try using a different USB-C port or device to isolate the problem.
• ధరించేటప్పుడు అసౌకర్యం: Adjust the strap length to find an optimal fit. Ensure the padded section rests comfortably on your shoulder.

For further assistance, please contact ULANZI customer support.

8. స్పెసిఫికేషన్లు

9. అధికారిక ఉత్పత్తి వీడియోలు

10. వారంటీ మరియు మద్దతు

వారంటీ సమాచారం మరియు కస్టమర్ మద్దతు కోసం, దయచేసి అధికారిక ULANZI ని చూడండి. webమీ రిటైలర్‌ను సైట్‌లో సంప్రదించండి లేదా సంప్రదించండి. వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రసీదును ఉంచండి.
