CHORTAU B-T006 4K+1080P Dual Dash Cam Instruction Manual

పరిచయం

This manual provides detailed instructions for the installation, operation, and maintenance of your CHORTAU B-T006 4K+1080P Dual Dash Cam. Please read this manual thoroughly before using the product to ensure proper function and safety.

Image: The CHORTAU B-T006 Dash Cam showcasing its main features including 4K+1080P recording, Wi-Fi connectivity, app control, parking monitoring, WDR/HDR, G-sensor, night vision, voice recording, and a 2.99-inch IPS display.

ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని అంశాలు మీ ప్యాకేజీలో చేర్చబడ్డాయని ధృవీకరించండి. ఏవైనా అంశాలు తప్పిపోయినా లేదా దెబ్బతిన్నా, దయచేసి కస్టమర్ మద్దతును సంప్రదించండి.

• 4K Main Drive Recorder (Front Camera)
• 1080P వెనుక కెమెరా
• టైప్-సి కార్ ఛార్జర్
• 64GB మైక్రో SD కార్డ్
• తొలగింపు పిన్
• Wiring Trim Tool
• Japanese Instruction Manual
• 3M VHB Double-Sided Tape
• Electrostatic Window Film (2 sheets)
• వారంటీ కార్డ్

Image: Visual representation of all components included in the product package, such as the main dash cam unit, rear camera, car charger, microSD card, and installation accessories.

ఉత్పత్తి ముగిసిందిview

The CHORTAU B-T006 is a dual dash cam system designed to record both front and rear views of your vehicle. It features a 4K front camera and a 1080P rear camera, providing comprehensive coverage.

చిత్రం: ముందు భాగం view of the dash cam, highlighting its compact size with approximate dimensions of 1.3 inches in height and 3.66 inches in width. The lens is labeled "ULTRA WIDE ANGLE LENS F1.8 DIGITAL RECORDER".

ముఖ్య లక్షణాలు:

• అధిక రిజల్యూషన్ రికార్డింగ్: 4K (front) + 1080P (rear) for clear video evidence.
• వైడ్ యాంగిల్ లెన్సులు: Front 170° and Rear 140° to cover multiple lanes.
• అంతర్నిర్మిత Wi-Fi: Connect to the 'viidure' app for real-time viewing, playback, and downloads.
• G-సెన్సార్: foo ని ఆటోమేటిక్‌గా లాక్ చేస్తుందిtage upon impact to prevent overwriting.
• 24-గంటల పార్కింగ్ పర్యవేక్షణ: Motion detection and time-lapse recording for continuous surveillance (requires hardwire kit, sold separately).
• లూప్ రికార్డింగ్: Automatically overwrites oldest fileమెమరీ కార్డ్ నిండినప్పుడు s.
• WDR/HDR Technology: Improves video clarity in varying light conditions, especially at night.
• 2.99-inch IPS LCD Screen: సులభంగా కోసం viewing మరియు మెనూ నావిగేషన్.

సెటప్ మరియు ఇన్‌స్టాలేషన్

Follow these steps to properly install your dash cam system.

1. Prepare the MicroSD Card:

• Insert the included 64GB microSD card into the dash cam's card slot.
• Format the microSD card within the dash cam's settings menu before first use to ensure optimal performance.

2. Install the Front Camera:

• మీరు డాష్ కామ్‌ను అమర్చాలనుకుంటున్న విండ్‌షీల్డ్ ప్రాంతాన్ని శుభ్రం చేయండి.
• Apply the electrostatic window film to the cleaned area.
• Attach the 3M VHB double-sided tape to the dash cam mount, then firmly press the mount onto the electrostatic film.
• కెమెరా స్పష్టంగా ఉందని నిర్ధారించుకోండి view of the road and does not obstruct your driving vision.

3. Install the Rear Camera:

• Mount the rear camera on the rear windshield using the provided adhesive, ensuring a clear view.
• Route the rear camera cable to the front dash cam, tucking it neatly along the vehicle's headliner and pillars using the wiring trim tool.
• ముందు డాష్ క్యామ్‌లో నియమించబడిన పోర్ట్‌కు వెనుక కెమెరా కేబుల్‌ను కనెక్ట్ చేయండి.

4. పవర్ కనెక్షన్:

• Connect the Type-C car charger to the dash cam and plug the other end into your vehicle's cigarette lighter socket.
• The dash cam will automatically power on and begin recording when the vehicle engine starts.

Image: A visual guide demonstrating the simple installation process, including connecting the Type-C car charger and the rear camera to the main unit. It also shows the detachable design of the mount using 3M VHB tape.

ఆపరేటింగ్ సూచనలు

ప్రాథమిక ఆపరేషన్:

• పవర్ ఆన్/ఆఫ్: The device powers on automatically with vehicle ignition and powers off when the engine is turned off. You can also manually power it on/off by pressing and holding the power button.
• రికార్డింగ్: Recording starts automatically when the device is powered on. A red indicator light or icon on the screen confirms recording is active.
• మెను నావిగేషన్: Use the physical buttons on the device to navigate through the menu options on the IPS screen.

డ్యూయల్ ఛానల్ రికార్డింగ్:

The dash cam records simultaneously from both the front and rear cameras. The front camera captures 4K UHD video with a 170° wide-angle view, while the rear camera records 1080P Full HD video with a 140° wide-angle view.

Image: An illustration showing the dual-channel recording capability, with the front camera capturing a 170° wide-angle view in 4K and the rear camera capturing a 140° wide-angle view in 1080P, covering both the front and rear of the vehicle.

Image: A graphic demonstrating the wide coverage of the front 4K UHD camera (170 degrees) and the rear 1080P FHD camera (140 degrees), ensuring comprehensive recording around the vehicle.

Wi-Fi and App Connection

The dash cam features built-in Wi-Fi for seamless connection to your smartphone via the 'viidure' app (available for Android and iOS).

యాప్‌కి కనెక్ట్ చేస్తోంది:

1. Download the 'viidure' app from your smartphone's app store.
2. Turn on the dash cam's Wi-Fi function (refer to the device's menu).
3. On your smartphone, go to Wi-Fi settings and connect to the dash cam's Wi-Fi network (SSID and password will be displayed on the dash cam screen).
4. Open the 'viidure' app. You can now view నిజ-సమయ footage, play back recorded videos, and download fileనేరుగా మీ ఫోన్‌కి కనెక్ట్ అవుతుంది.

The app allows for easy sharing of recorded videos to social media platforms.

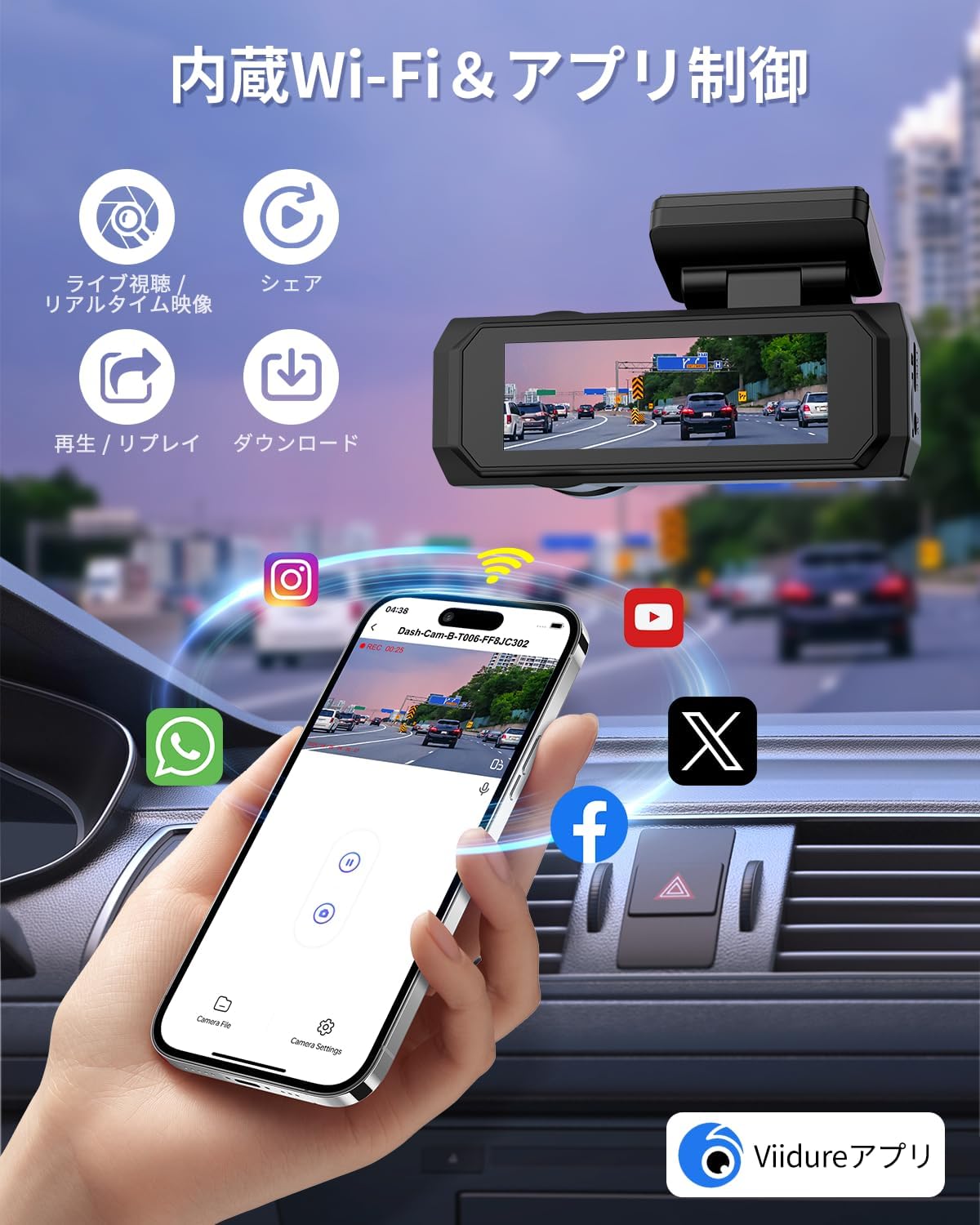

Image: A smartphone screen showing the 'viidure' app interface, connected to the dash cam, with options for live view, sharing, playback, and downloading videos. Social media icons are also visible, indicating sharing capabilities.

Parking Monitoring & G-Sensor

The dash cam offers advanced parking surveillance features to protect your vehicle when parked.

24-గంటల పార్కింగ్ పర్యవేక్షణ:

• When enabled, the dash cam can monitor your vehicle for 24 hours.
• This feature typically requires a hardwire kit (sold separately) to provide continuous power to the dash cam when the vehicle is off.
• It can utilize motion detection or time-lapse recording to save storage space while providing continuous coverage.

G-Sensor Protection:

• The built-in G-sensor detects sudden impacts or collisions.
• Upon detection, it automatically locks the current video segment, preventing it from being overwritten by loop recording. This ensures critical accident footage సాక్ష్యంగా భద్రపరచబడింది.
• The G-sensor sensitivity can usually be adjusted in the dash cam's settings.

Image: A graphic illustrating the 24-hour parking monitoring mode, which requires a hardwire kit. It also depicts the G-sensor locking footage upon impact and the loop recording function overwriting old files.

Image: A visual representation of the 24-hour parking monitoring system, showing a car protected by the dash cam's continuous surveillance. A hardwire kit is indicated as necessary for this function.

లూప్ రికార్డింగ్

The dash cam utilizes loop recording to ensure continuous recording without manually clearing the memory card.

• When the microSD card reaches its storage limit, the system automatically overwrites the oldest unlocked video files.
• Video segments are typically recorded in 1, 2, or 3-minute intervals (configurable in settings).
• Files locked by the G-sensor or manually locked will not be overwritten.
• The device supports microSD cards up to 256GB (64GB card included).

Image: A graphic explaining seamless loop recording, where the dash cam automatically overwrites the oldest footage when the 64GB memory card is full. It also shows how G-sensor activated recordings are locked and protected.

Night Vision & WDR/HDR

The CHORTAU B-T006 is equipped with advanced technologies to ensure clear recordings even in low-light conditions.

• సూపర్ నైట్ విజన్: The F1.8 large aperture lens and advanced sensor enhance light intake, providing clear images at night.
• WDR (Wide Dynamic Range) & HDR (High Dynamic Range): These technologies balance exposure in scenes with both very bright and very dark areas, ensuring details are captured without overexposure or underexposure. This is crucial for identifying license plates and road signs in challenging lighting.
• The lens assembly consists of 6 layers of glass for optimal image quality.

Image: A visual demonstrating the dash cam's super night vision, highlighting the F1.8 large aperture lens, WDR&HDR technology, and 6-layer lens construction for enhanced clarity in low-light conditions.

Image: A diagram explaining the WDR (Wide Dynamic Range) function, showing how it corrects for overexposed and underexposed areas in a single frame to produce a balanced image. Features like F1.8 large aperture, WDR&HDR, and 6-layer glass lens are highlighted.

నిర్వహణ

సరైన నిర్వహణ మీ డాష్ క్యామ్ యొక్క దీర్ఘాయువు మరియు సరైన పనితీరును నిర్ధారిస్తుంది.

• లెన్స్‌లను శుభ్రం చేయండి: Regularly wipe the front and rear camera lenses with a soft, lint-free cloth to ensure clear recordings. Avoid abrasive materials.
• మైక్రో SD కార్డ్ నిర్వహణ: Format the microSD card monthly to prevent data corruption and maintain recording efficiency. Back up important fileఫార్మాటింగ్ ముందు s.
• ఫర్మ్‌వేర్ నవీకరణలు: Check the CHORTAU official website periodically for firmware updates. Updating firmware can improve performance and add new features.
• ఆపరేటింగ్ ఉష్ణోగ్రత: Avoid exposing the dash cam to extreme temperatures for extended periods.

ట్రబుల్షూటింగ్

If you encounter issues with your dash cam, refer to the following common problems and solutions.

If the problem persists after trying these solutions, please contact CHORTAU customer support.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

CHORTAU is committed to customer satisfaction and provides comprehensive support for its products.

• 12-నెలల వారంటీ: Your CHORTAU B-T006 Dash Cam comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and ensures product reliability.
• జీవితకాల సాంకేతిక మద్దతు: CHORTAU offers lifetime technical support for all its products. If you encounter any issues or have questions, please do not hesitate to contact our support team.
• సంప్రదింపు సమాచారం: Refer to the warranty card included in your package or the CHORTAU official webఅత్యంత తాజా కస్టమర్ సర్వీస్ సంప్రదింపు వివరాల కోసం సైట్.

వారంటీ క్లెయిమ్‌ల కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.
