Beliani Walk-in Steel Garden Shed (Model 668921)

ఉత్పత్తి ముగిసిందిview

This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your Beliani Walk-in Steel Garden Shed, model 668921. Designed for outdoor storage, this durable metal shed offers ample space and protection for your gardening tools, firewood, or lawnmower.

Key features include UV resistance, waterproofing, a stable structure, and optimal air circulation through integrated vents. The shed is constructed from high-quality galvanized steel, ensuring longevity and resistance to various weather conditions.

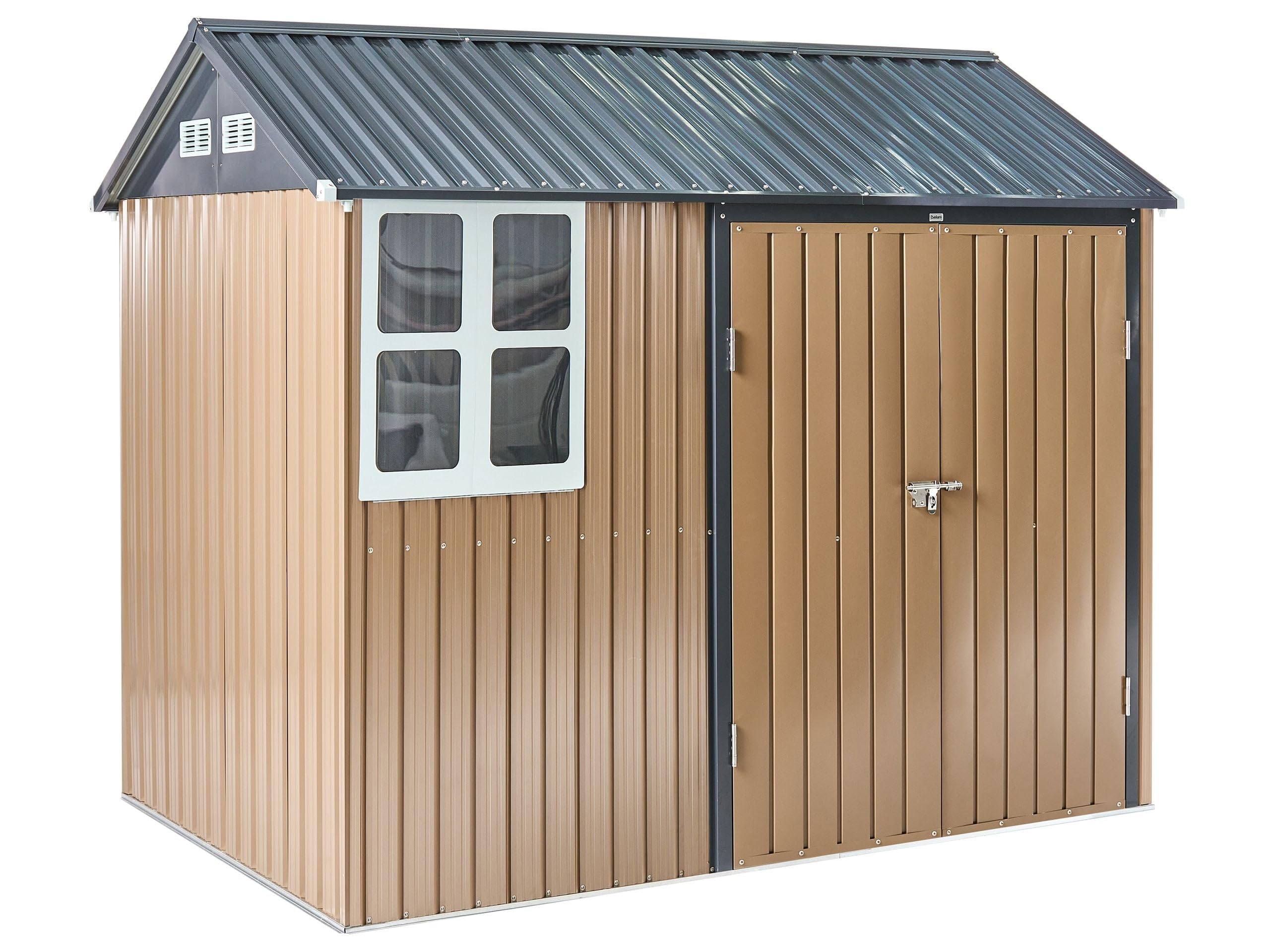

Image 1: The Beliani Walk-in Steel Garden Shed installed in a garden, showcasing its brown steel panels and grey roof.

సెటప్ మరియు అసెంబ్లీ

Assembly of the Beliani Garden Shed typically requires more than 240 minutes and should be performed by at least two adults. Ensure all components are present before beginning assembly. A solid, level surface is crucial for stable installation. Grass or gravel surfaces require a pre-prepared concrete foundation or a stable base for secure mounting.

ఫౌండేషన్ అవసరాలు:

• The shed must be installed on a solid, level surface to ensure structural integrity and proper door alignment.
• For soft ground like grass or gravel, a concrete slab or a robust, level timber frame base is required.
• Ensure the chosen location allows for sufficient clearance around the shed for assembly and future access.

అసెంబ్లీ దశలు (సాధారణ మార్గదర్శకత్వం):

1. Unpack all components and verify against the parts list provided in the separate assembly instructions.
2. Assemble the base frame on your prepared foundation, ensuring it is square and level.
3. Attach the wall panels, starting from a corner and working around, securing them to the base and to each other.
4. Install the door frame and doors, ensuring they open and close smoothly.
5. Assemble and attach the roof structure and panels, ensuring proper overlap for waterproofing.
6. Install any windows, vents, and final trim pieces.
7. Securely anchor the shed to the foundation using appropriate hardware (not always included, check specific instructions).

Image 2: Dimensional diagram of the garden shed, indicating overall height (218 cm), width (248 cm), and depth (161 cm), along with window and door measurements.

చిత్రం 3: ముందు view of the shed with both doors fully open, revealing the interior space and door latch mechanism.

ఆపరేటింగ్ సూచనలు

డోర్ ఆపరేషన్:

The shed features double doors equipped with a bolt closure mechanism for security. To open, unlatch the bolt and pull the doors outwards. To close, push the doors firmly together and engage the bolt. Ensure the doors are fully closed and latched to protect contents from weather and unauthorized access.

వెంటిలేషన్:

Optimal air circulation is maintained through integrated ventilation holes located near the roofline. These vents help prevent moisture buildup, mold, and mildew inside the shed. Do not obstruct these vents to ensure proper airflow.

చిత్రం 4: క్లోజప్ view of the white ventilation grilles located on the gable end of the shed, designed for optimal air circulation.

నిర్వహణ మార్గదర్శకాలు

Regular maintenance will extend the lifespan and preserve the appearance of your Beliani Garden Shed.

• శుభ్రపరచడం: Clean the exterior surfaces periodically with a mild soap solution and water. Use a soft brush or cloth. Rinse thoroughly with clean water. Avoid abrasive cleaners or harsh chemicals, which can damage the galvanized finish.
• UV నిరోధకత: The shed is designed with UV-resistant materials to prevent fading. However, prolonged exposure to intense sunlight may still cause minor color changes over many years.
• వాటర్ఫ్రూఫింగ్: The shed is waterproof. Regularly inspect the roof, seams, and around the doors and windows for any signs of leaks or damage. Seal any gaps with appropriate outdoor sealant if necessary.
• Door Hinges and Latches: Periodically lubricate door hinges and the bolt closure mechanism with a silicone-based lubricant to ensure smooth operation and prevent rust.
• Foundation and Anchoring: Annually check the shed's foundation and anchoring points for stability. Re-tighten any loose bolts or anchors to ensure the shed remains securely fixed, especially after strong winds.
• వెంటిలేషన్: Ensure ventilation grilles remain clear of debris (leaves, dust, insect nests) to maintain optimal airflow and prevent moisture buildup.

ట్రబుల్షూటింగ్

• నీటి లీకేజీ:
  • Check all roof panels and wall seams for proper overlap and secure fastening.
  • Inspect sealant around windows and doors. Apply outdoor-grade silicone sealant if gaps are found.
  • Ensure the shed is level; an uneven base can cause panels to misalign and create gaps.
• Doors Sticking or Not Closing Properly:
  • Verify the shed is installed on a perfectly level surface. An uneven foundation can cause the door frame to warp.
  • Check door hinges for damage or rust; lubricate if necessary.
  • Ensure no debris is obstructing the door's path or the bottom track.
• షెడ్ అస్థిరత:
  • Confirm the shed is securely anchored to its foundation.
  • Check all panel connections and bolts for tightness.
  • Ensure the foundation itself is stable and not shifting.
• లోపల సంక్షేపణం:
  • Ensure ventilation grilles are clear and unobstructed.
  • Avoid storing wet items inside without allowing them to dry.
  • Consider adding a moisture absorber if the problem persists in very humid climates.

ఉత్పత్తి లక్షణాలు

Image 5: Technical drawing illustrating the key dimensions of the shed, including height, width, depth, and specific measurements for the window and door openings.

వారంటీ సమాచారం

Specific warranty details for the Beliani Walk-in Steel Garden Shed (Model 668921) are typically provided at the point of purchase or within the product packaging. Please refer to your purchase receipt or contact the retailer/manufacturer directly for comprehensive warranty terms and conditions. Generally, Beliani products are covered by a manufacturer's warranty against defects in materials and workmanship under normal use.

కస్టమర్ మద్దతు

For further assistance, missing parts, or technical inquiries regarding your Beliani Walk-in Steel Garden Shed, please contact Beliani customer service or the retailer from whom you purchased the product. Have your model number (668921) and proof of purchase ready when contacting support.

You can often find contact information on the Beliani official website or through your original purchase platform.
