Abysm Gaming Arian Frame A400 ATX Gaming PC Case Instruction Manual

1. ఉత్పత్తి ముగిసిందిview

The Abysm Gaming Arian Frame A400 is an ATX gaming PC case designed for optimal airflow and component compatibility. It features a unique inclined chassis, tempered glass side panel, and includes four ARGB PWM fans for superior cooling and customizable lighting.

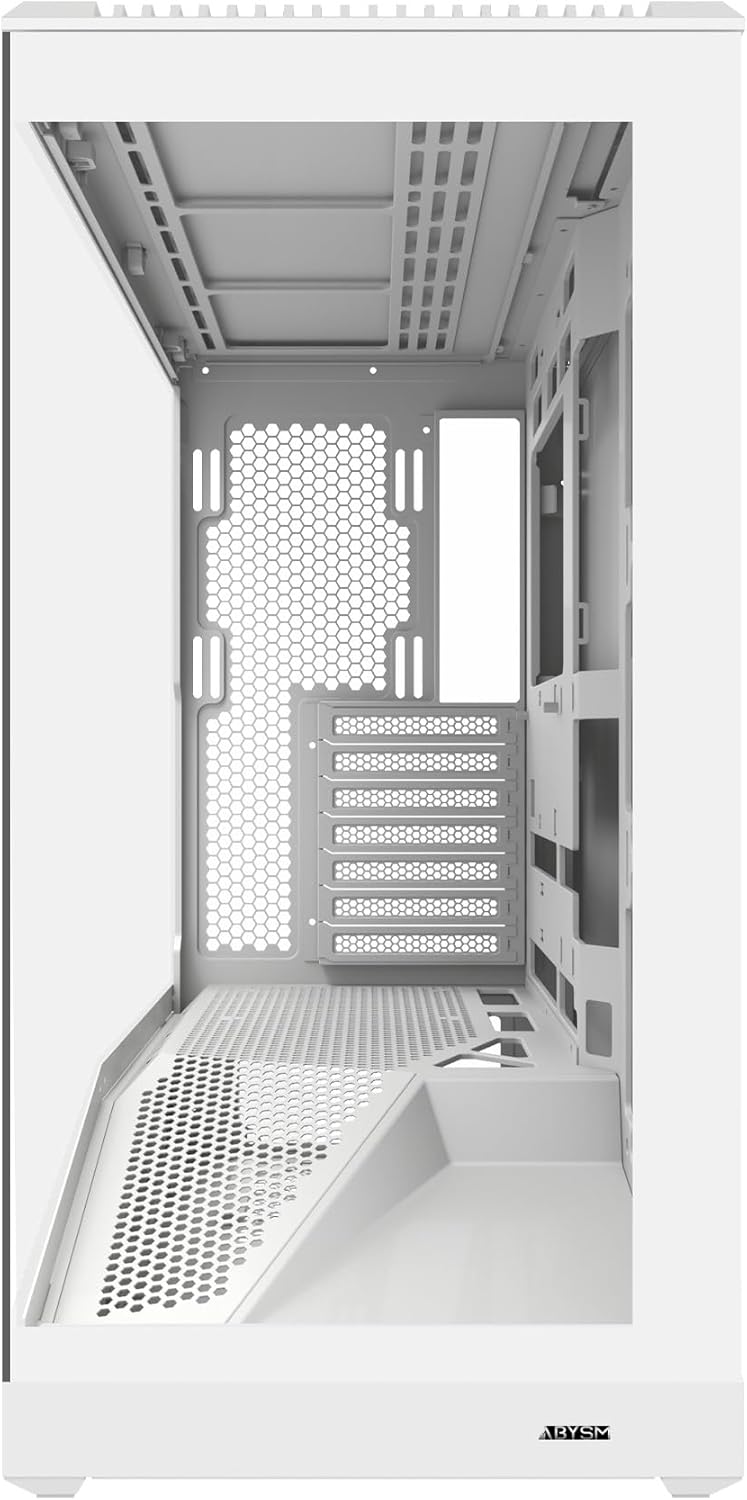

మూర్తి 1.1: ముందు view of the Abysm Gaming Arian Frame A400 PC case, showcasing its clean design and front panel I/O ports.

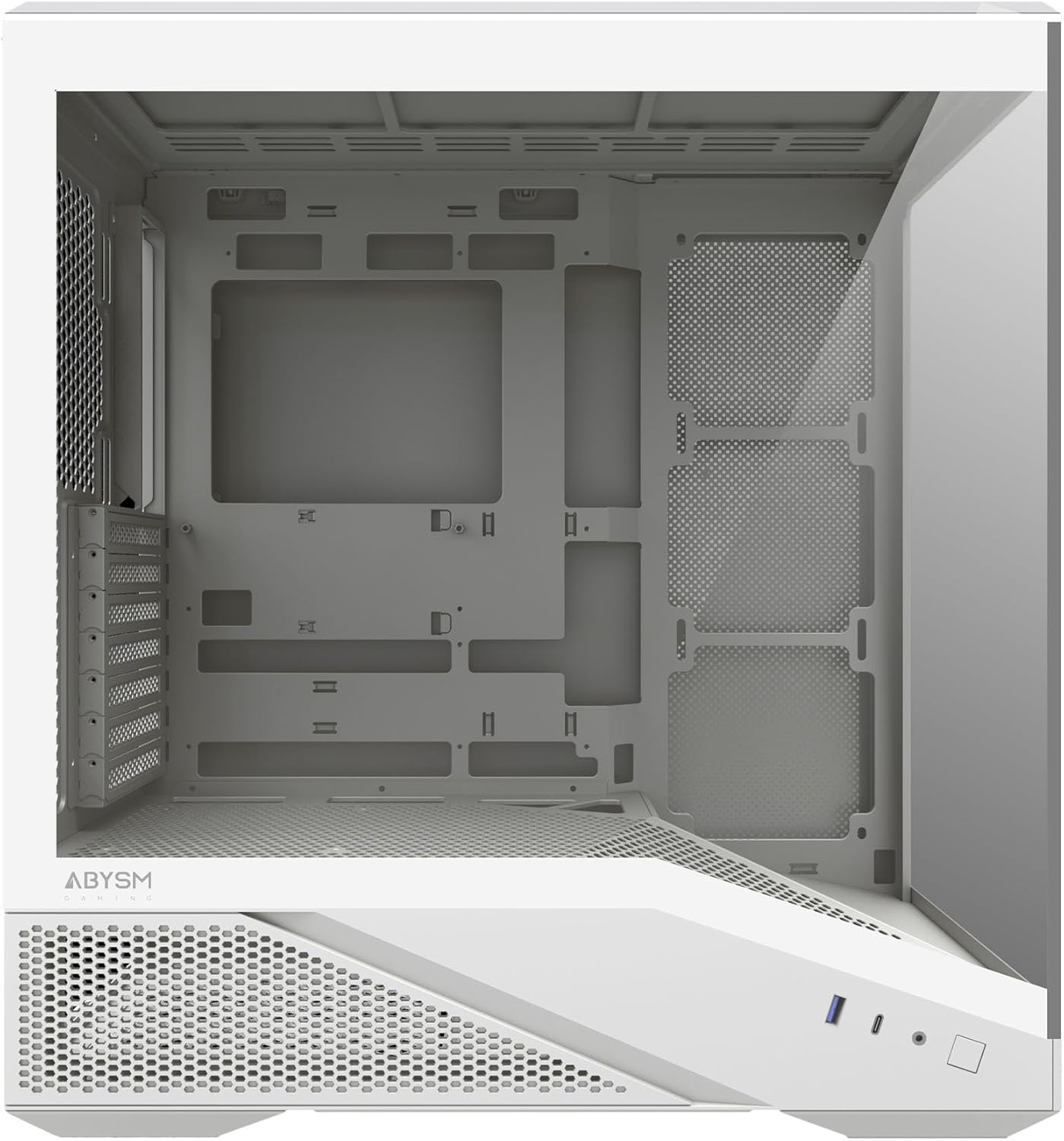

మూర్తి 1.2: వైపు view of the Abysm Gaming Arian Frame A400 PC case, highlighting the tempered glass panel for component visibility.

2. సెటప్ మరియు కాంపోనెంట్ ఇన్‌స్టాలేషన్

2.1 చట్రం సిద్ధం చేయడం

Before installing components, ensure the case is placed on a stable, flat surface. Carefully remove the tempered glass side panel and the opposite metal side panel to access the interior. Refer to the exploded view for panel removal guidance.

మూర్తి 2.1: పేలింది view illustrating the various removable components of the chassis, including side panels and top cover.

2.2 మదర్బోర్డ్ సంస్థాపన

The Arian Frame A400 supports ATX, Micro-ATX, and Mini-ITX motherboards. Install the necessary standoffs for your motherboard form factor. Carefully align your motherboard with the standoffs and I/O shield, then secure it with screws.

2.3 గ్రాఫిక్స్ కార్డ్ (GPU) ఇన్‌స్టాలేషన్

This case accommodates graphics cards up to 420 mm in length. Remove the appropriate PCIe slot covers, insert your GPU into the PCIe slot on the motherboard, and secure it with screws.

2.4 CPU కూలర్ ఇన్‌స్టాలేషన్

The case supports CPU coolers with a maximum height of 182 mm. Install your CPU cooler according to its manufacturer's instructions, ensuring proper mounting and thermal paste application.

2.5 స్టోరేజ్ డ్రైవ్ ఇన్‌స్టాలేషన్

The chassis provides dedicated mounting points for both 2.5-inch SSDs and 3.5-inch HDDs. Locate the drive bays behind the motherboard tray and near the PSU shroud. Secure your drives using the provided screws.

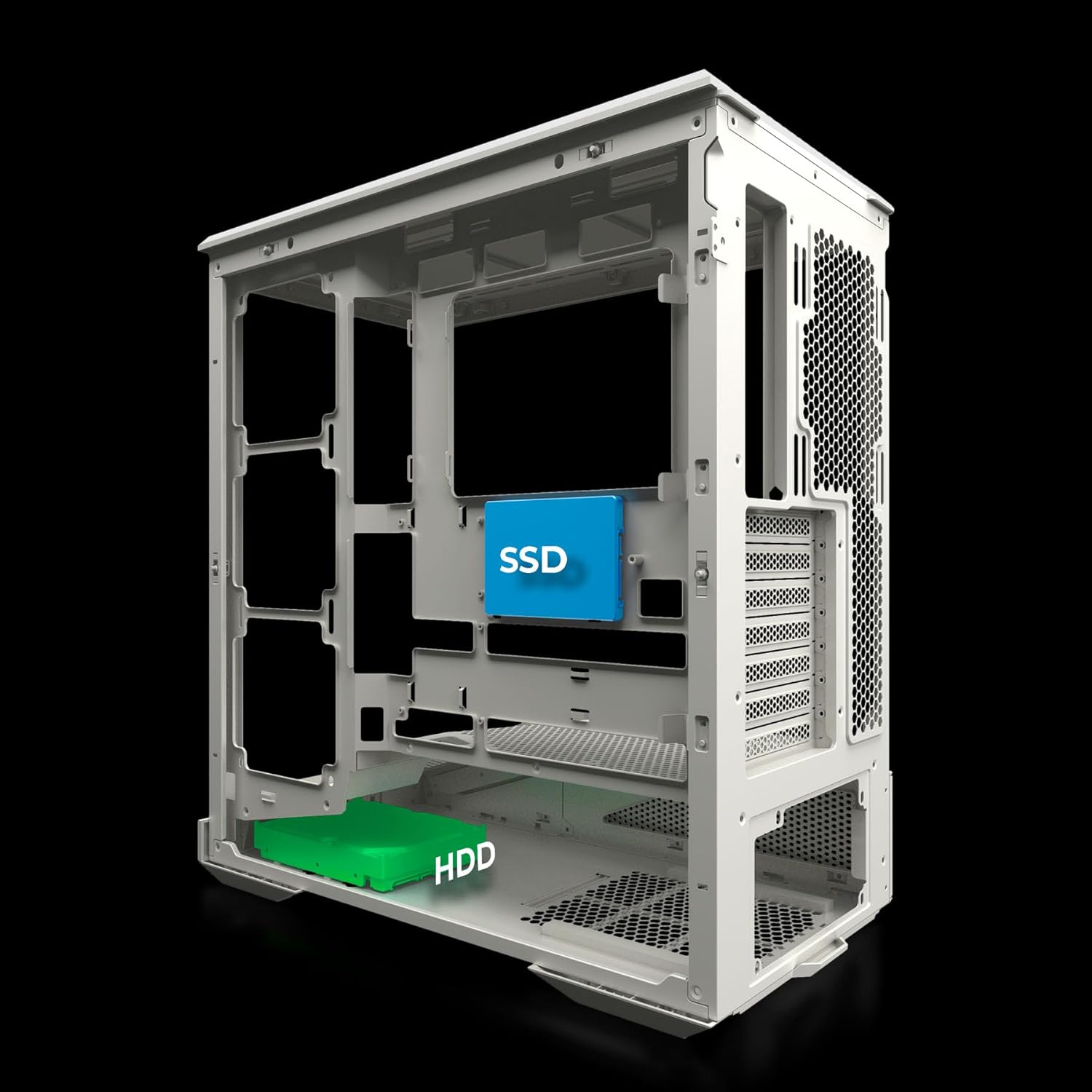

చిత్రం 2.2: అంతర్గత view indicating the mounting positions for SSD (2.5-inch) and HDD (3.5-inch) storage drives.

2.6 విద్యుత్ సరఫరా యూనిట్ (PSU) సంస్థాపన

Install your power supply unit into the designated compartment at the bottom rear of the case. The inclined chassis design enhances airflow to the PSU, contributing to overall system cooling.

2.7 ఫ్యాన్ మరియు రేడియేటర్ ఇన్‌స్టాలేషన్

The Arian Frame A400 supports extensive cooling configurations:

• Up to 8 x 120 mm fans.
• Liquid cooling radiators up to 360 mm.

The case includes four ARGB PWM fans with automatic speed control (600–1600 rpm) and premium hydraulic bearings for durability and low noise. Ensure fans are oriented correctly for optimal airflow (intake/exhaust).

Figure 2.3: Compatibility diagram detailing maximum dimensions for CPU coolers, GPUs, and various fan/radiator configurations.

2.8 కేబుల్ నిర్వహణ

Utilize the advanced cable management system with hidden channels behind the motherboard tray to route and secure cables. This improves aesthetics and airflow within the case.

3. ఆపరేటింగ్ సూచనలు

3.1 ఫ్రంట్ ప్యానెల్ కనెక్టివిటీ

ముందు I/O ప్యానెల్ వీటికి అనుకూలమైన యాక్సెస్‌ను అందిస్తుంది:

• USB 3.0 పోర్ట్‌లు
• USB Type-C 3.1 port
• HD Audio jacks (headphone and microphone)

Ensure these connectors are properly attached to your motherboard's corresponding headers during setup.

3.2 ARGB లైటింగ్ నియంత్రణ

The included ARGB PWM fans feature intelligent lighting. Connect the ARGB cables to a compatible motherboard header or an ARGB controller (if supplied separately or integrated with your motherboard) to synchronize and customize lighting effects using your motherboard's software.

4. నిర్వహణ

4.1 కేసును శుభ్రపరచడం

Regular cleaning helps maintain optimal performance and aesthetics:

• బాహ్య: బాహ్య ఉపరితలాలను మృదువైన, డితో తుడవండిamp గుడ్డ. రాపిడి క్లీనర్లను నివారించండి.
• టెంపర్డ్ గ్లాస్: Use a glass cleaner and a microfiber cloth for the tempered glass panel to prevent streaks.
• డస్ట్ ఫిల్టర్లు: Periodically remove and clean any dust filters (e.g., on the top, front, or bottom) to ensure unrestricted airflow. Use compressed air or rinse with water and allow to dry completely before reinstallation.
• అంతర్గత: Use compressed air to remove dust buildup from internal components and fan blades. Ensure the system is powered off and unplugged before cleaning the interior.

5. ట్రబుల్షూటింగ్

5.1 Fans Not Spinning or ARGB Not Lighting Up

• కనెక్షన్‌లను తనిఖీ చేయండి: Ensure all fan power cables and ARGB cables are securely connected to the motherboard or fan controller.
• Motherboard Settings: Verify fan control and ARGB settings in your motherboard's BIOS/UEFI or software.

5.2 System Overheating

• గాలి ప్రవాహం: Confirm that fans are installed with the correct orientation for intake and exhaust.
• డస్ట్ బిల్డప్: నిర్వహణ విభాగంలో వివరించిన విధంగా దుమ్ము ఫిల్టర్లు మరియు అంతర్గత భాగాలను శుభ్రం చేయండి.
• కాంపోనెంట్ క్లియరెన్స్: Ensure no cables or other obstructions are blocking airflow paths.

5.3 ఫ్రంట్ ప్యానెల్ పోర్ట్‌లు పనిచేయడం లేదు

• అంతర్గత కనెక్షన్లు: Double-check that the front panel USB and audio cables are correctly connected to the corresponding headers on your motherboard.
• డ్రైవర్ ఇన్‌స్టాలేషన్: Ensure all necessary motherboard drivers are installed.

6. సాంకేతిక లక్షణాలు

7. వారంటీ సమాచారం

Abysm Gaming products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Abysm Gaming webవారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రుజువును ఉంచండి.

8. కస్టమర్ మద్దతు

If you encounter any issues or have questions regarding your Abysm Gaming Arian Frame A400 PC case that are not covered in this manual, please contact Abysm Gaming customer support or the retailer from whom you purchased the product. You may find additional resources and FAQs on the official Abysm Gaming webసైట్.

Webసైట్: www.abysmgaming.com (ఉదాampలింక్, దయచేసి అధికారికంగా ధృవీకరించండి. webసైట్)
